REF5030IDGKT - TEXAS INSTRUMENTS - LOW-NOISE, VERY LOW DRIFT, PRECISION VOLTAGE REFERENCE
| High Light: |
power led driver circuit,led matrix driver ic |
||
|---|---|---|---|
Quick Detail:
Low-Noise, Very Low Drift, Precision VOLTAGE REFERENCE
Description:
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes.
Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very-low noise make the REF50xx family ideal for use
PP/Vin high-precision data acquisition systems. available in both standardand high-grade versions. They are offered in MSOP-8(3) and SO-8 packages, and are specified from –40°C to +125°C.
Applications:
• LOW TEMPERATURE DRIFT:
• HIGH ACCURACY:
– High-Grade: 0.05% (max)
• LOW NOISE: 3µV
• HIGH OUTPUT CURRENT: ±10mA
• TEMPERATURE RANGE: –40°C to +125°C
Specifications:
| Datasheets | REF5020,25,30,40,45,50 Analog Signal Chain Guide |

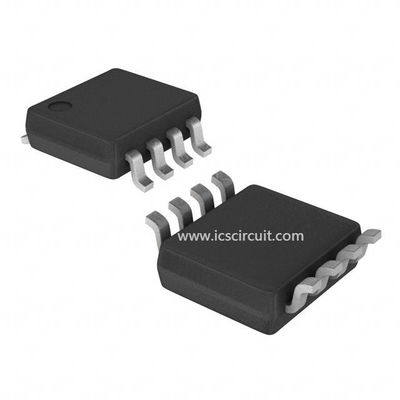

| Product Photos | 8-MSOP |
| Product Training Modules | Selecting Voltage References |
| Standard Package | 1 |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - Voltage Reference |
| Series | - |
| Packaging | Cut Tape (CT) |
| Reference Type | Series, Precision |
| Voltage - Output | 3V |
| Tolerance | ±0.05% |
| Temperature Coefficient | 3ppm/°C |
| Voltage - Input | 3.2 V ~ 18 V |
| Number of Channels | 1 |
| Current - Cathode | - |
| Current - Quiescent | 1mA |
| Current - Output | 10mA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Other Names | 296-24501-1 |
