Automotive Mini LED Driver IC C4B H2 TI TPS560200QDGKRQ1 Original

Minimum Order Quantity: 10 PCS
Automotive Mini LED Driver IC C4B H2 TI TPS560200QDGKRQ1 Original
Features Gallery Product Description Request A Quote

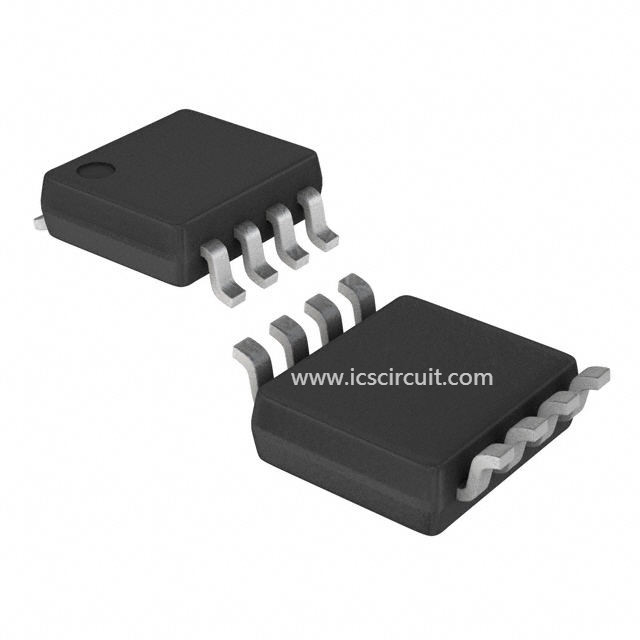

Manufacturer Part Number: TPS560200QDGKRQ1
Brand Name: Original Brand
Place Of Origin: Original Manufacturer
Applications: Communications Equipment
More Details: Contact Us Please
High Light:

Mini LED Driver IC C4B


Automotive LED Driver IC H2



Basic Infomation
Place of Origin: Original Factory
Brand Name: Texas Instruments
Certification: Standard Certification
Model Number: TPS560200QDGKRQ1
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



Light Source: LED Input Voltage(v): AC85-265V
Lamp Luminous Flux(lm): 6000 Lamp Body Material: Aluminum
Product Name: Product Name
High Light:

TI Mini LED Driver IC


Texas Instruments Mini LED Driver IC





Display Driver IC Texas Instruments/TI TPS560200QDGKRQ1

Vin (Min) (V) 4.5
Vin (Max) (V) 17
Vout (Min) (V) 0.8
Vout (Max) (V) 6.5
Iout (Max) (A) 0.5
Iq (Typ) (uA) 60
Switching frequency (Min) (kHz) 600
Switching frequency (Max) (kHz) 600
Features Enable, Light Load Efficiency, Soft Start Fixed, Synchronous Rectification
Operating temperature range (C) -40 to 125
Rating Automotive
Regulated outputs (#) 1


Features for the TPS560200-Q1

  • AEC-Q100 Qualified for Automotive Applications
    • Temperature Range: Grade 1 -40°C to 125°C
    • HBM ESDClassification: H2
    • CDM ESD Classification: C4B
  • Integrated Monolithic 0.95-Ω High-Side and 0.33-Ω Low-Side MOSFETs
  • 500-mA Continuous Output Current
  • Output Voltage Range: 0.8 V to 6.5 V
  • 0.8-V Voltage Reference With ±1.3% Accuracy Over Temperature
  • Auto-Skip Advanced Eco-mode™ for High Efficiency at Light Loads
  • D-CAP2™ Mode Enables Fast Transient Responses
  • No External Compensation Needed
  • 600-kHz Switching Frequency
  • 2-ms Internal Soft Start
  • Safe Start-Up into Prebiased VOUT
  • Thermal Shutdown
  • –40°C to 125°C Operating Junction Temperature Range
  • Available in 8-pin MSOP Package

Description for the TPS560200-Q1

The TPS560200-Q1 is an 17-V, 500-mA, low-Iq, adaptiveon-time D-CAP2 mode synchronous monolithic buck converter with integrated MOSFETs in easy-to-use8-pin MSOP package.

The TPS560200-Q1 lets system designers complete the suiteof various end-equipment power bus regulators with a cost-effective, low component count and lowstandby current solution. The main control loop for the device uses the D-CAP2 mode control thatprovides a fast transient response with no external compensation components. The adaptive on-timecontrol supports seamless transition between PWM mode at higher load conditions and advancedEco-Mode operation at light loads.

The TPS560200-Q1 also has a proprietary circuit thatenables the device to adopt to both low equivalent series resistance (ESR) output capacitors, suchas POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 17-VVIN input. The output voltage can be programmed between 0.8 V and 6.5 V. The device also features afixed 2-ms soft-start time. The device is available in the 8-pin MSOP package.
