SMT Display LED Driver IC Automotive TI LP8860LQVFPRQ1 SMD2835

Minimum Order Quantity: 10 PCS
SMT Display LED Driver IC Automotive TI LP8860LQVFPRQ1 SMD2835
Features Gallery Product Description Request A Quote

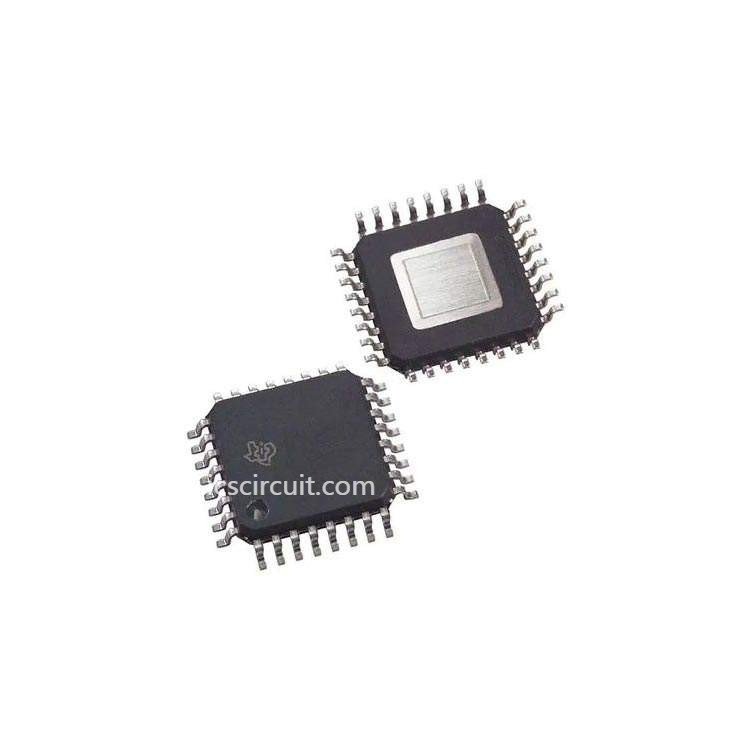

Manufacturer Part Number: LP8860LQVFPRQ1
Brand Name: Original
Type: Integrated Circuit
Mounting Type: SMD/SMT
Place Of Origin: Original
Applications: Standard
High Light:



LED Driver IC Automotive


SMT Display Driver IC

Basic Infomation
Place of Origin: Original Factory
Brand Name: Texas Instruments
Model Number: LP8860LQVFPRQ1
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



Light Source: LED Led Light Source: SMD2835
Lamp Power(w): 50w 60w 80w Application: Residential
Product Name: Outdoor Led Street Light
High Light:

LP8860LQVFPRQ1 Display Driver IC


SMD2835 Display Driver IC


Texas Instruments Automotive LED Driver IC



Display Driver IC Texas Instruments/TI LP8860LQVFPRQ1

ECAD Module Build or Request PCB Footprint or Symbol
Supply and Demand Status Limited
Popularity Medium
Fake Threat In the Open Market 89 pct.
Quantity per package 1
Package Bulk
Series Automotive, AEC-Q100
Manufacturer Texas Instruments
Features LED Driver IC Output Dimming
Categories Integrated Circuits (ICs)


Features for the LP8860-Q1

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Device Temperature Grade 1: –40°C to +125°C Ambient OperatingTemperature
  • Input Voltage Operating Range 3 V to 48 V
  • Four High-Precision Current Sinks
    • Current Matching0.5% (typical)
    • LED StringCurrent up to 150 mA per Channel
    • Dimming Ratio > 13 000:1 With External PWMBrightness Control
    • 16-bit Dimming Control with SPI orI2C
    • Supports Display Mode (Global Dimming) andCluster Mode (Independent Dimming)
  • Hybrid PWM and Current Dimming for Higher LED Drive Optical Efficiency
  • Synchronization for LED PWM Frequency
  • Boost Controller With Programmable Switching Frequency 100 kHz to 2.2 MHz and Spread-Spectrum Option for Lower EMI
  • Boost Synchronization Input
  • Power-Line FET Control for Inrush Current Protection and Standby Energy Saving
  • Automatic LED Current Reduction With External Temperature Sensor
  • Extensive Fault Diagnostics

Description for the LP8860-Q1

The LP8860-Q1 is an automotive high-efficiency LED driver with boost controller. It has 4high-precision current sinks that can be controlled by a PWM input signal, an SPI orI2C master, or both.

The boost converter has adaptive output voltage control based on the headroom voltages ofthe LED current sinks. This feature minimizes the power consumption by adjusting the voltage to thelowest sufficient level in all conditions. Awide-range adjustable frequency allows the LP8860-Q1 to avoid disturbance for AM radioband.

The LP8860-Q1 supports built-in hybrid PWM and current dimming, which reduces EMI,extends the LED lifetime, and increases the total optical efficiency. Phase-shift PWM reducesaudible noise and output ripple.
