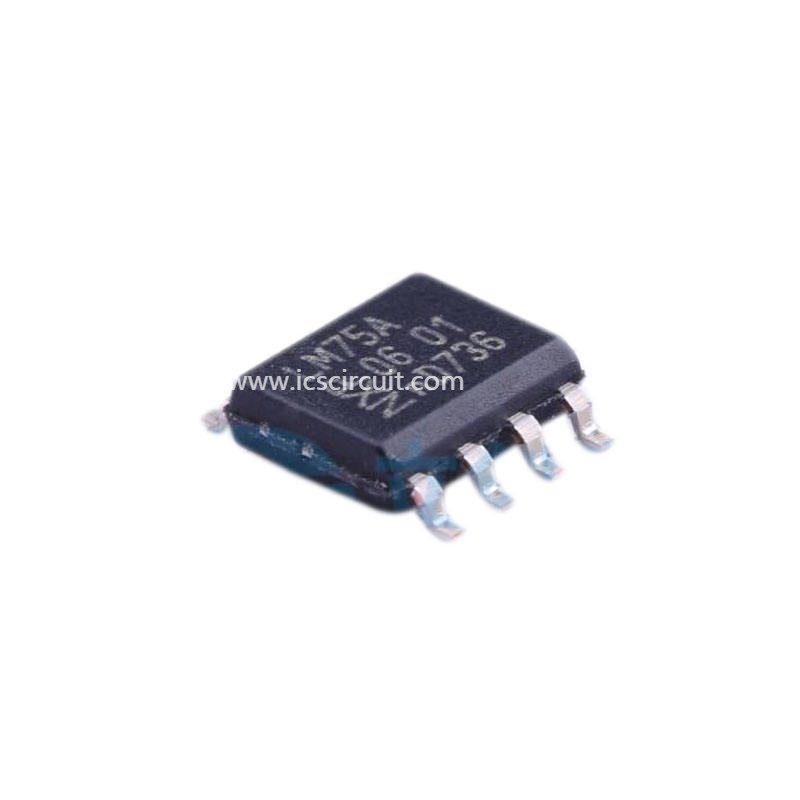

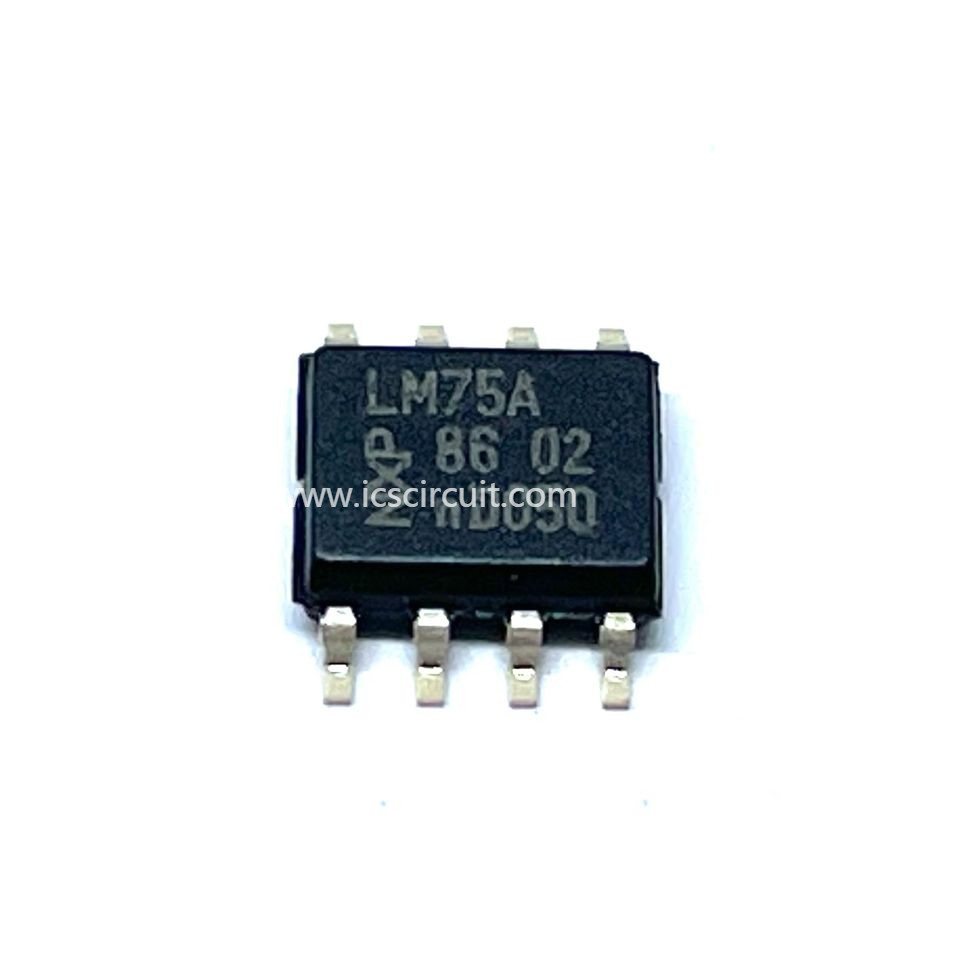

Original LED Driver IC LM75AD Digital Temperature Sensor RoHS

Minimum Order Quantity: 1
Contact for Sample
Original LED Driver IC LM75AD Digital Temperature Sensor RoHS
Features Gallery Product Description Request A Quote
Manufacturer Part Number: LM75AD
Brand Name: Original
Type: Integrated Circuit
Place Of Origin: Original Manufacturer
Description: IC LM75AD
Condition: Original 100%
High Light:

Original LED Driver IC


LED Driver IC RoHS



Basic Infomation
Place of Origin: Original Factory
Brand Name: Semiconductors
Certification: Lead free / RoHS Compliant
Model Number: LM75AD
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 2000
Product Description



Detailed Product Description
High Light:

power led driver circuit


offline led driver ic



Quick Detail:


Digital temperature sensor and thermal Watchdog





The LM75A is a temperature-to-digital converter using an on-chip

band-gap temperature sensor and Sigma-delta A-to-D conversion

technique. The device is also a thermal detector providing an

over-temp detection output. The LM75A contains a number of data

registers: Configuration register (Conf) to store the device settings

such as device operation mode, OS operation mode, OS polarity

and OS fault queue as described in the functional description

section; temperature register (Temp) to store the digital temp

reading, and set-point registers (Tos & Thyst) to store programmable

overtemp shutdown and hysteresis limits, that can be communicated

by a controller via the 2-wire serial I2C-bus interface. The device

also includes an open-drain output (OS) which becomes active

when the temperature exceeds the programmed limits. There are

three selectable logic address pins so that eight devices can be

connected on the same bus without address conflict.

The LM75A can be configured for different operation conditions. It

can be set in normal mode to periodically monitor the ambient

temperature, or in shutdown mode to minimize power consumption.

The OS output operates in either of two selectable modes: OS

comparator mode and OS interrupt mode. Its active state can be

selected as either HIGH or LOW. The fault queue that defines the

number of consecutive faults in order to activate the OS output is

programmable as well as the set-point limits.

The temperature register always stores an 11-bit 2’s complement

data giving a temperature resolution of 0.125 °C. This high

temperature resolution is particularly useful in applications of

measuring precisely the thermal drift or runaway.

The device is powered-up in normal operation mode with the OS in

comparator mode, temperature threshold of 80 °C and hysteresis of

75 °C, so that it can be used as a stand-alone thermostat with those

pre-defined temperature set poin





• Pin-for-pin replacement for industry standard LM75 and offers

improved temperature resolution of 0.125 °C and specification of

a single part over power supply range from 2.8 V to 5.5 V.

• Small 8-pin package types: SO8 and TSSOP8

• I2C-bus interface with up to 8 devices on the same bus

• Power supply range from 2.8 V to 5.5 V

• Temperatures range from –55 °C to +125 °C

• 11-bit ADC that offers a temperature resolution of 0.125 °C

• Temperature accuracy of:

±2 °C from –25 °C to +100 °C

±3 °C from –55 °C to +125 °C

• Programmable temperature threshold and hysteresis set points

• Supply current of 3.5 mA in shut-down mode for power


• Stand-alone operation as thermostat at power-up.

• ESD protection exceeds 2000 V HBM per JESD22-A114,

200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101

• Latch-up testing is done to JESDEC Standard JESD78 which





Datasheets LM75A
I2C-Bus Solutions Guide
Product Photos 8-SOIC
Featured Product - I²C Interface
Standard Package 100
Category Integrated Circuits (ICs)
Family PMIC - Thermal Management
Series -
Packaging Tube
Function Temp Monitoring System (Sensor), Watchdog
Sensor Type Internal
Sensing Temperature -55°C ~ 125°C
Accuracy ±3°C(Max)
Topology ADC (Sigma Delta), Comparator, Oscillator, Register Bank
Output Type 2-Wire Serial, I²C™
Output Alarm No
Output Fan Yes
Voltage - Supply 2.8 V ~ 5.5 V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Catalog Page 777 (CN081 PDF)
For Use With 568-4002-ND - DEMO BOARD I2C
Other Names 568-4226-5
