LM2717MT/NOPB - NATIONAL SEMICONDUCTOR - DUAL STEP-DOWN DC/DC CONVERTER
| High Light: | led matrix driver ic,offline led driver ic | ||
|---|---|---|---|
Quick Detail:
Dual Step-down DC/DC Converter
Description:
The LM2717 is composed of two PWM DC/DC buck (stepdown) converters. The first converter is used to generate a fixed output voltage of 3.3V. The second converter is used to generate an adjustable output voltage. Both converters feature low RDSON (0.16Ω) internal switches for maximum efficiency. Operating frequency can be adjusted anywhere between 300kHz and 600kHz allowing the use of small external components. External soft-start pins for each enables the user to tailor the soft-start times to a specific application.
Each converter may also be shut down independently with its own shutdown pin. The LM2717 is available in a low profile 24-lead TSSOP package ensuring a low profile overall solution.
Applications:
n Fixed 3.3V output buck converter with a 2.2A, 0.16Ω, internal switch
n Adjustable buck converter with a 3.2A, 0.16Ω, internal switch
n Operating input voltage range of 4V to 20V
n Input undervoltage protection
n 300kHz to 600kHz pin adjustable operating frequency
n Over temperature protection
n Small 24-Lead TSSOP package
Specifications:
| Datasheets | LM2717 |

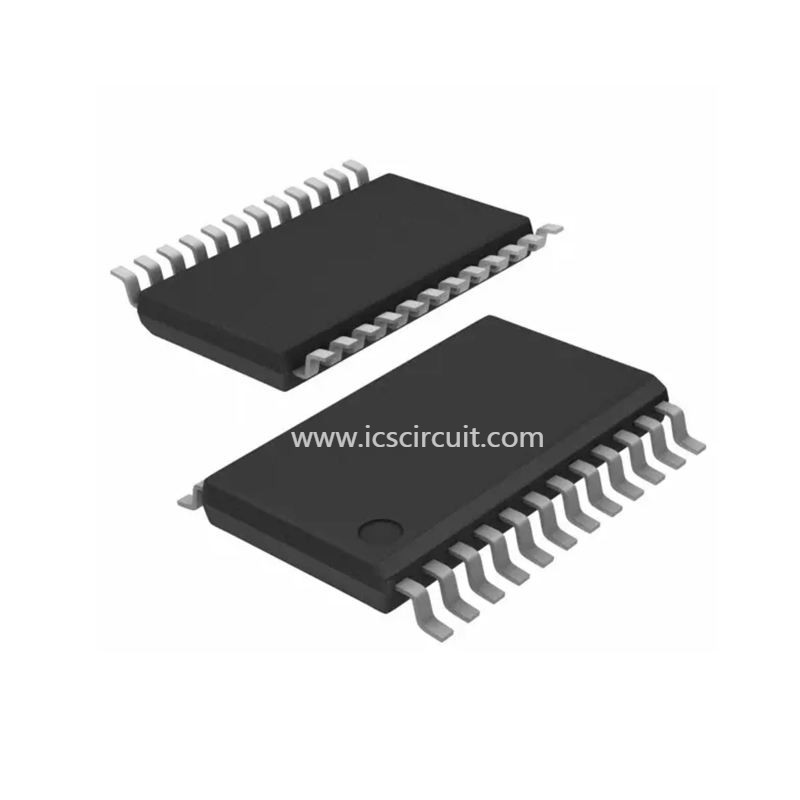

| Product Photos | 24-TSSOP, SOT355-1 |
| Design Resources | Create your power design now with TI’s WEBENCH® Designer |
| Standard Package | 61 |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | - |
| Packaging | Tube |
| Type | Step-Down (Buck) |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Output | Adj to 1.258V |
| Voltage - Input | 4 V ~ 20 V |
| PWM Type | Current Mode |
| Frequency - Switching | 300kHz ~ 600kHz |
| Current - Output | 2.2A, 3.2A |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Catalog Page | 1013 (CN081 PDF) |
| For Use With | LM2717MT-ADJEV-ND - BOARD EVALUATION LM2717MT-ADJ |
| Other Names | *LM2717MT/NOPB *LM2717MTNOPB LM2717MTNOPB LM2717MTNOPB-ND |
