750ma Stepper Motor Driver IC Bipolar E-L6219DS013TR Integrated Circuit

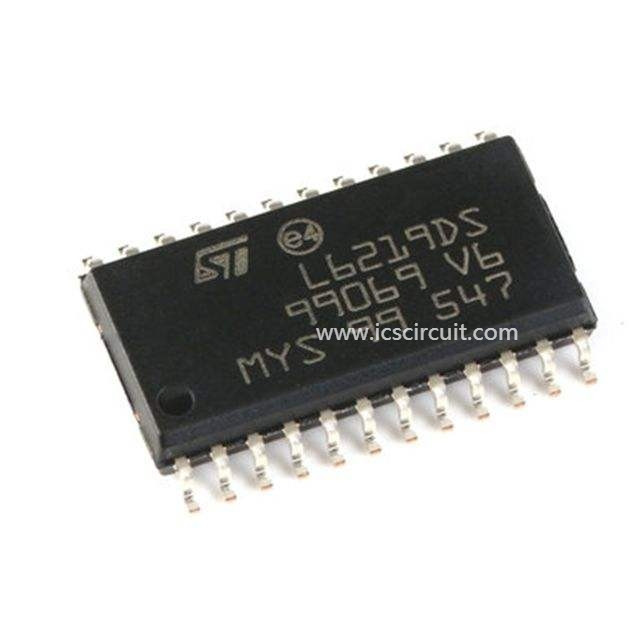

L6219DS013TR stepper bipolar Motor Driver IC chip in SOIC24 package

Features
Able to drive both windings of bipolar stepper motor
Output current up to 750 mA each winding
Wide voltage range: 10 V to 46 V
Half-step, full-step and microstepping mode
Built-in protection diodes
Internal PWM current control
Low output saturation voltage
Designed for unstabilized motor supply voltage
Internal thermal shutdown

Description
The L6219 is a bipolar monolithic integrated circuits intended to control and drive both winding of a bipolar stepper motor or bidirectionally control two DC motors. The L6219 with a few external components form a complete control and drive circuit for LS-TTL or microprocessor controlled stepper motor system. The power stage is a dual full bridge capable of sustaining 46V and including four diodes for current recirculation.
A cross conduction protection is provided to avoid simultaneous cross conduction during switching current direction. An internal pulse-width-modulation (PWM) controls the output current to 750 mA with peak startup current up to 1 A. Wide range of current control from 750 mA (each bridge) is permitted by means of two logic inputs and an external voltage reference. A phase input to each bridge determines the load current direction. A thermal protection circuitry disables the outputs if the chip temperature exceeds safe operating limits.

Manufacturer	STMicroelectronics
Series	-

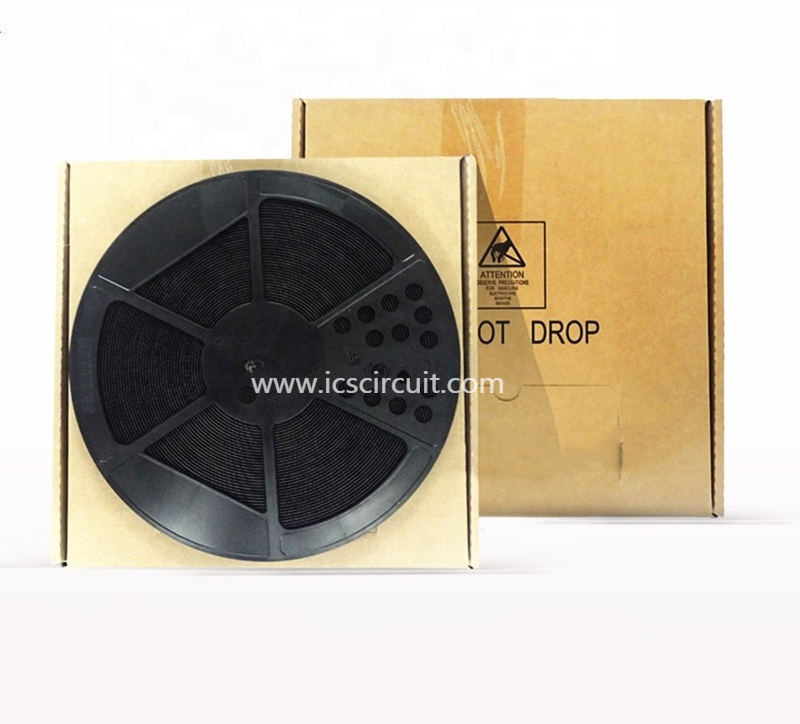

Packaging	Tape & Reel (TR)
Part Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	-
Step Resolution	1, 1/2
Applications	General Purpose
Current - Output	750mA
Voltage - Supply	4.75 V ~ 5.25 V
Voltage - Load	10 V ~ 46 V
Operating Temperature	-20°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package	24-SO
