A4982SETTR-T INTEGRATED CIRCUIT CHIP , DMOS MICROSTEPPING DRIVER WITH TRANSLATOR AND OVERCURRENT PROTECTION
Quick Detail:
DMOS Microstepping Driver with Translator and Overcurrent Protection
Specifications:
| Datasheets | A4982 |

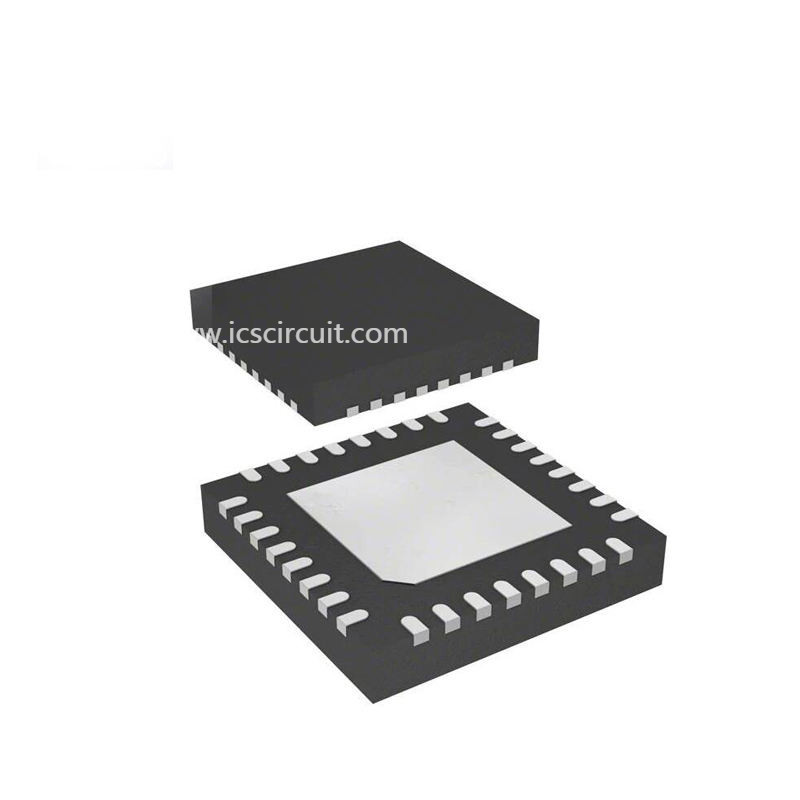

| Product Photos | 32-QFN Pkg |
| Product Training Modules | A49xx Family of Stepper Motor Driver ICs |
| Featured Product | A498x Motor Driver Family |
| Standard Package | 1,500 |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - Motor and Fan Controllers, Drivers |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Full H-Bridge, (2) Dual |
| Interface | Parallel |
| Applications | General Purpose |
| Current - Output | 2A |
| Voltage - Supply | 3 V ~ 5.5 V |
| Voltage - Load | 8 V ~ 35 V |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN Exposed Pad (5x5) |
| Dynamic Catalog | Drivers |
| Other Names | 620-1340-2 A4982SETTRT |
