Semiconductor Integrated Circuit Chip MOSFET Driver MIC5016BWM Low Side

Minimum Order Quantity: 1
Semiconductor Integrated Circuit Chip MOSFET Driver MIC5016BWM Low Side
Features Gallery Product Description Request A Quote
Manufacturer Part Number: MIC5016BWM
Brand Name: Original
Package: SOIC-16/(SOP-16)
Unit Price: Contact Us For Latest Price
Condition: Original 100%
Datasheet: Please Contact Us!
High Light:

Semiconductor Integrated Circuit Chip


Integrated Circuit Chip MOSFET



Basic Infomation
Place of Origin: Original Factory
Brand Name: Micrel Semiconductor
Certification: Lead free / RoHS Compliant
Model Number: MIC5016BWM
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



Detailed Product Description
Voltage - Supply: 2.75 V ~ 30 V Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount Supplier Device Package: 16-SOIC
Configuration: High And Low Side, Independent Delay Time: 2.5ms
High Light:

power led driver circuit


offline led driver ic



MIC5016BWM Micrel Semiconductor -Low-Cost Dual High- or Low-Side MOSFET Driver

Quick Detail:

Low-Cost Dual High- or Low-Side MOSFET Driver


MIC5016 and MIC5017 dual MOSFET drivers are designed for gate control of N-channel, enhancement-mode, power MOSFETs used as high-side or low-side switches. The MIC5016/7 can sustain an on-state output indefinitely.

The MIC5016/7 operates from a 2.75V to 30V supply. In highside configurations, the driver can control MOSFETs that switch loads of up to 30V. In low-side configurations, with separate supplies, the maximum switched voltage is limited only by the MOSFET.

The MIC5016/7 has two TTL compatible control inputs. The MIC5016 is noninverting while the MIC5017 is inverting.

The MIC5016/7 features internal charge pumps that can sustain gate voltages greater than the available supply voltage. The driver is capable of turning on logic-level MOSFETs from a 2.75V supply or standard MOSFETs from a 5V supply. Gate-to-source output voltages are internally limited to approximately 15V.

The MIC5016/7 is protected against automotive load dump, reversed battery, and inductive load spikes of –20V. The driver’s overvoltage shutdown feature turns off the external MOSFETs at approximately 35V to protect the load against power supply excursions.

The MIC5016 is an improved pin-for-pin compatible replacement in many MIC5012 applications. The MIC5016/7 is available in plastic 14-pin DIP and 16-pin SOIC pacakges.


• 2.75V to 30V operation

• 100µA maximum supply current (5V supply)

• 15µA typical off-state current

• Internal charge pump

• TTL compatible input

• Withstands 60V transient (load dump)

• Reverse battery protected to –20V

• Inductive spike protected to –20V

• Overvoltage shutdown at 35V

• Internal 15V gate protection

• Minimum external parts

• Operates in high-side or low-side configurations

• 1µA control input pull-off

• Inverting and noninverting versions


Datasheets MIC5016, MIC5017

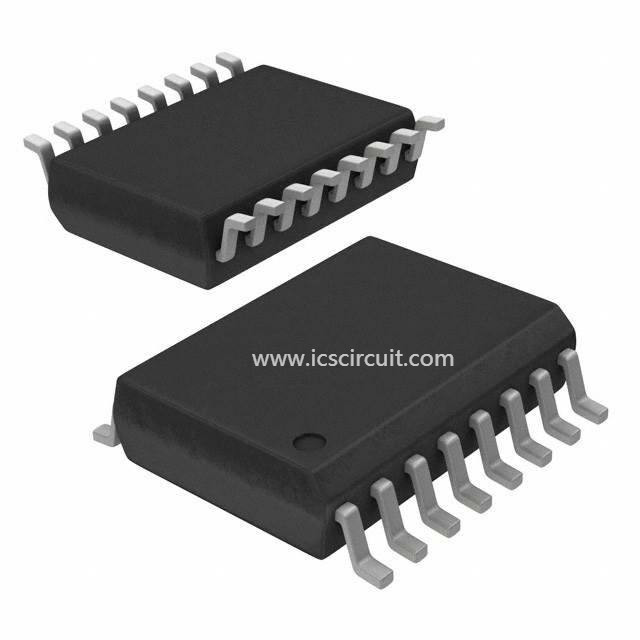

Product Photos 16 SOIC
Standard Package 47
Category Integrated Circuits (ICs)
Family PMIC - MOSFET, Bridge Drivers - External Switch
Series -
Packaging Tube
Configuration High and Low Side, Independent
Input Type Non-Inverting
Delay Time 2.5ms
Current - Peak -
Number of Configurations 1
Number of Outputs 2
High Side Voltage - Max (Bootstrap) -
Voltage - Supply 2.75 V ~ 30 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
