Integrated MC34063ACD-TR Chip PMIC DC To DC Converter Circuits

Minimum Order Quantity: 10 PCS
MOQ
negotiate
Price
Integrated MC34063ACD-TR Chip PMIC DC To DC Converter Circuits
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Integrated Circuit
Place Of Origin: ORIGINAL
Description: MC34063ACD-TR
Style: Contact Customer Service
Condition: Original 100%
Frequency - Switching: Standard
High Light:

Integrated MC34063ACD-TR

,

MC34063ACD-TR

,

PMIC DC To DC Converter Circuits

Basic Infomation
Place of Origin: Original Factory
Brand Name: STMicroelectronics
Certification: ROHS COMPLIANT
Model Number: MC34063ACD-TR
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description

INTEGRATED CIRCUIT CHIP MC34063ACD TR STMICROELECTRONICS CONVERTER CONTROL CIRCUITS



Quick Detail:
DC/DC converter control circuits
Description:
The MC34063A/E series is a monolithic control circuit delivering the main functions for DC/DC voltage converting.
The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch.
Output voltage is adjustable through two external resistors with a 2 % reference accuracy.Employing a minimum number of external components the MC34063A/E devices series is designed for step-down, step-up and voltageinverting applications.
Applications:
■ Output switch current in excess of 1.5 A
■ 2 % reference accuracy
■ Low quiescent current: 2.5 mA (typ.)
■ Operating from 3 V to 40 V
■ Frequency operation to 100 kHz
■ Active current limiting
Specifications:

Datasheets MC34063xx

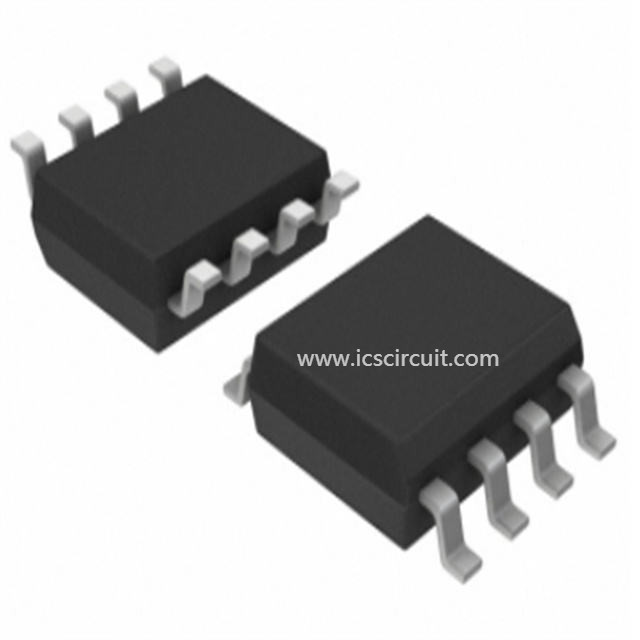

Product Photos 8-SOIC
Other Related Documents MC34063AC View All Specifications
Product Training Modules DC to DC Conversion Cookbook
Standard Package 2,500
Category Integrated Circuits (ICs)
Family PMIC - Voltage Regulators - DC DC Switching Regulators
Series -
Packaging Tape & Reel (TR)
Type Step-Down (Buck), Step-Up (Boost), Inverting
Output Type Adjustable
Number of Outputs 1
Voltage - Output 1.25 V ~ 38 V
Voltage - Input 3 V ~ 40 V
PWM Type -
Frequency - Switching 100kHz
Current - Output 1.5A
Synchronous Rectifier No
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Other Names 497-7850-2
MC34063ACD-TR-ND
MC34063ACDTR
