INTEGRATED CIRCUIT CHIP CGRB301-G INTEGRATED CIRCUIT CHIP , SMD GENERAL PURPOSE RECTIFIERS
Quick Detail:
SMD General Purpose Rectifiers
Specifications:
| Datasheets | CGRB301-G thru 307-G |

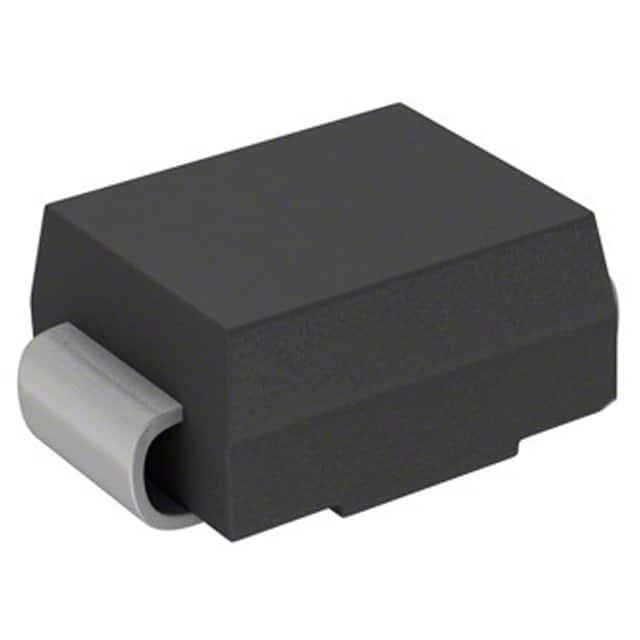

| Product Photos | CEFB104-G |
| Product Training Modules | Flat Chip Diodes |
| Standard Package | 3,000 |
| Category | Discrete Semiconductor Products |
| Family | Diodes, Rectifiers - Single |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 3A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 5µA @ 50V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Other Names | 641-1168-2 |
