TDA1515BQ - SEMICONDUCTORS - 24 W BTL OR 2 X 12 W STEREO CAR RADIO POWER AMPLIFIER
| High Light: |
ic integrated circuits,integrated circuit chips |
||
|---|---|---|---|
Quick Detail:
24 W BTL or 2 x 12 W stereo car radio power amplifier
Description:

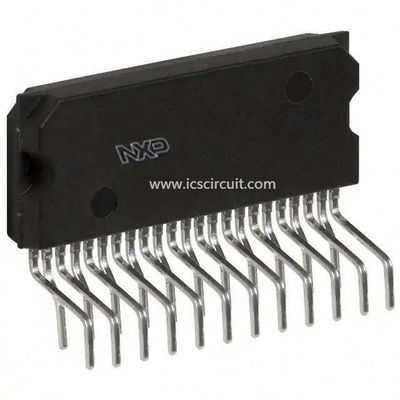

The TDA1515BQ is a monolithic integrated class-B output amplifier in a 13-lead single in-line (SIL) plastic power package. The device is primarily developed for car radio applications, and also to drive low-impedance loads (down to1,6 Ω). At a supply voltage VP = 14,4 V, an output power of 24 W can be delivered into a 4 Ω BTL (Bridge Tied Load),or, when used as stereo amplifier, it delivers 2 × 12 W into 2 Ω or 2 × 7 W into 4 Ω.
Applications:
• flexibility in use − mono BTL as well as stereo
• high output power
• low offset voltage at the output (important for BTL)
• large usable gain variation
• very good ripple rejection
• internal limited bandwidth for high frequencies
• low stand-by current possibility (typ. 1 µA), to simplify required switches; TTL drive possible
• low number and small sized external components
• high reliability
Specifications:
| part no. | TDA1515BQ |
| Manufacturer | |
| supply ability | 10000 |
| datecode | 10+ |
| package | SIL |
| remark | new and original stock |
