Integrated Circuit HITAG Reader Chip IC HTRC11001T programmable

Minimum Order Quantity: 5PCS
Integrated Circuit HITAG Reader Chip IC HTRC11001T programmable
Features Gallery Product Description Request A Quote
Model Number: HTRC11001T
Brand Name: Original
Place Of Origin: Original Manufacturer
DC: Lastest New
Port: Shenzhen Or Hongkong
Lead Time: 1-3Working Days
High Light:

HITAG Reader Chip IC


HITAG Reader Chip



Basic Infomation
Place of Origin: Original Factory
Brand Name: Semiconductors
Certification: Standard Certification
Model Number: HTRC11001T
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



High Light:

programmable ic chips


ic integrated circuits



Quick Detail:

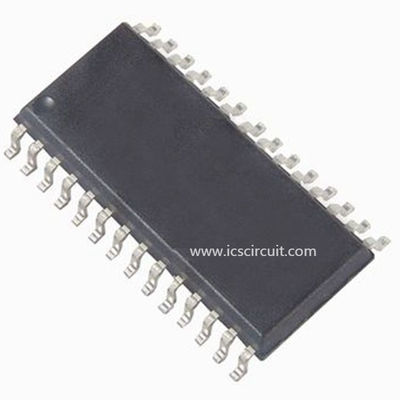

HITAG reader chip





HITAG(1) is the family name of the reader chip

HTRC11001T to use with transponders which are based on the HITAG tag ICs (HT1ICS3002x or HT2ICS2002x).

The receiver parameters (gain factors and filter cut-off frequencies) can be optimized to system and transponder requirements. The HTRC11001T is designed for easy integration into RF identification readers.

State-of-the-art technology allows almost complete integration of the necessary building blocks. A powerful antenna demodulator and driver, together with a low-noise adaptive sampling time demodulator, a programmable filter, amplifier and digitizer, build the complete transceiver unit, required to design high-performance readers.

A three-pin microcontroller interface is employed for programming the HTRC11001T as well as for the bidirectional communication with the transponders. The three-wire interface can be changed into a two-wire interface by connecting the data input and the data output.

Tolerance dependent zero amplitude modulation will cause severe problems in envelope detector systems, resulting in the need of very low tolerance reader antennas. These problems are solved by the new Adaptive Sampling Time (AST) technique.





• Combines all analog RFID reader hardware in one single chip

• Optimized for HITAG transponder family

• Robust antenna coil power driver stage with modulator

• High performance adaptive sampling time AM/PM demodulator (patent pending)

• Read and write function

• On-chip clock oscillator

• Antenna rupture and short circuit detection

• Low power consumption

• Very low power standby mode

• Low external component count

• Small package SO14.





Datasheets HTRC11001T
Product Photos 14-SOIC
Standard Package 2,500
Category RF/IF and RFID
Family RFID ICs
Series HITAG® 1
Packaging Tape & Reel (TR)
RF Type Read Only
Frequency 125kHz
Features ISO11785, ISO14223
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SO
Catalog Page 543 (CN081 PDF)
Other Names 568-2207-2
