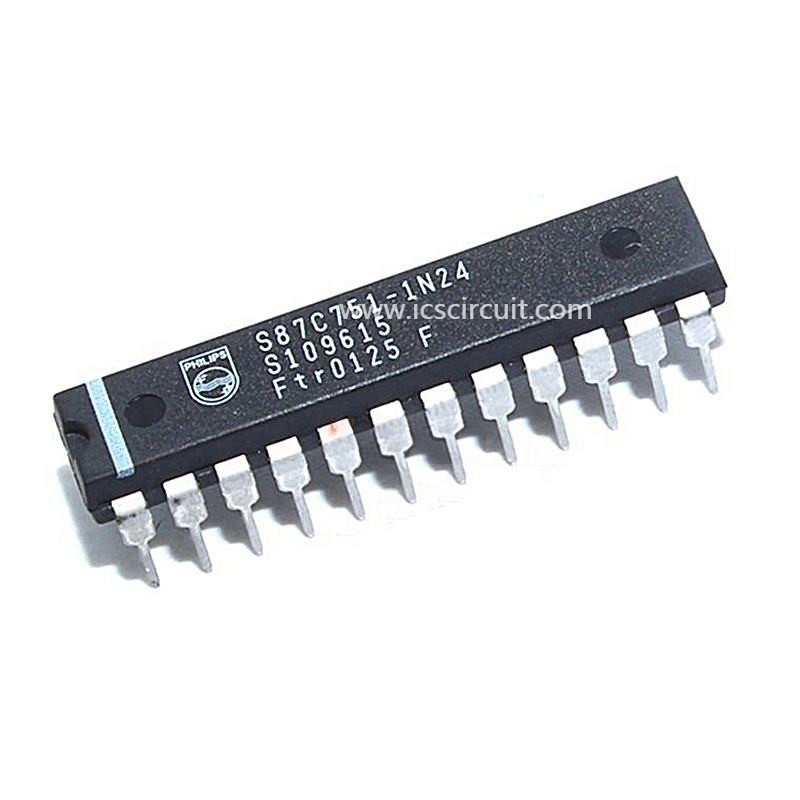

MCU Microcontroller Unit S87C751 - - 80C51 8-bit microcontroller family 2K/64 OTP/ROM, I2C, low pin count
| High Light: |
micro controller unit,microchip microcontroller |
||
|---|---|---|---|
Quick Detail:
80C51 8-bit microcontroller family 2K/64 OTP/ROM, I2C, low pin count
Description:
The 83C751/87C751 offers the advantages of the 80C51 architecture in a small package and at low cost.
The 8XC751 Microcontroller is fabricated with high-density CMOS technology. epitaxial substrate minimizes CMOS latch-up sensitivity.
The 8XC751 contains a 2k × 8 ROM (83C751) EPROM (87C751), a
64 × 8 RAM, 19 I/O lines, a 16-bit auto-reload counter/timer, a five-source, fixed-priority level interrupt structure, a bidirectional inter-integrated circuit (I2C) serial bus interface, and an on-chip oscillator.
The on-board inter-integrated circuit (I2C) bus interface allows the
8XC751 to operate as a master or slave device on the I2C small area network. This capability facilitates I/O and RAM expansion, access to EEPROM, processor-to-processor communication, and efficient interface to a wide variety of dedicated I2C peripherals.
Applications:
• 80C51 based architecture
• Inter-Integrated Circuit (I2C) serial bus interface
• Small package sizes
– 24-pin DIP (300 mil “skinny DIP”)
– 24-pin Shrink Small Outline Package
– 28-pin PLCC
• 87C751 available in one-time programmable plastic packages
• Wide oscillator frequency range
• Low power consumption:
– Normal operation: less than 11mA @ 5V, 12MHz
– Idle mode
– Power-down mode
• 2k × 8 ROM (83C751)
2k × 8 EPROM (87C751)
• 64 × 8 RAM
• 16-bit auto reloadable counter/timer
• Fixed-rate timer
• Boolean processor
• CMOS and TTL compatible
• Well suited for logic replacement, consumer and industrial applications
• LED drive outputs
Specifications:
| part no. | S87C751 |
| Manufacturer | |
| supply ability | 10000 |
| datecode | 10+ |
| package | PLCC |
| remark | new and original stock |
