ATMEGA164P-20AU - ATMEL CORPORATION - 8-BIT MICROCONTROLLER WITH 16/32/64K BYTES IN-SYSTEM PROGRAMMABLE FLASH
| High Light: |
microcontroller modules,microchip microcontroller |
||
|---|---|---|---|
Quick Detail:
8-bit Microcontroller with 16/32/64K Bytes In-System Programmable Flash
Description:
The ATmega164P/324P/644P is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega164P/324P/644P achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Applications:
• High-performance, Low-power AVR® 8-bit Microcontroller
• Advanced RISC Architecture
– 131 Powerful Instructions – Most Single-clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 20 MIPS Throughput at 20 MHz
– On-chip 2-cycle Multiplier
• Nonvolatile Program and Data Memories
– 16/32/64K Bytes of In-System Self-Programmable Flash
Endurance: 10,000 Write/Erase Cycles
– Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
– 512B/1K/2K Bytes EEPROM
Endurance: 100,000 Write/Erase Cycles
– 1/2/4K Bytes Internal SRAM
– Programming Lock for Software Security
• JTAG (IEEE std. 1149.1 Compliant) Interface
– Boundary-scan Capabilities According to the JTAG Standard
– Extensive On-chip Debug Support
– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Peripheral Features
– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
– Real Time Counter with Separate Oscillator
– Six PWM Channels
– 8-channel, 10-bit ADC
Differential mode with selectable gain at 1x, 10x or 200x
– Byte-oriented Two-wire Serial Interface
– Two Programmable Serial USART
– Master/Slave SPI Serial Interface
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-chip Analog Comparator
– Interrupt and Wake-up on Pin Change
• Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal Calibrated RC Oscillator
– External and Internal Interrupt Sources
– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
• I/O and Packages
– 32 Programmable I/O Lines
– 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF
• Operating Voltages
– 1.8 - 5.5V for ATmega164P/324P/644PV
– 2.7 - 5.5V for ATmega164P/324P/644P
• Speed Grades
– ATmega164P/324P/644PV: 0 - 4MHz @ 1.8 - 5.5V, 0 - 10MHz @ 2.7 - 5.5V
– ATmega164P/324P/644P: 0 - 10MHz @ 2.7 - 5.5V, 0 - 20MHz @ 4.5 - 5.5V
• Power Consumption at 1 MHz, 1.8V, 25°C for ATmega164P/324P/644P
– Active: 338/398/TBD µA
– Power-down Mode:0.035 /0.027/TBD µA
– Power-save Mode:0.5 /0.5/TBD µA (Including 32 kHz RTC)
Specifications:
| Datasheets | ATMEGA164,324,644(P,V) Datasheet ATMEGA164,324,644(P,V) Summary |

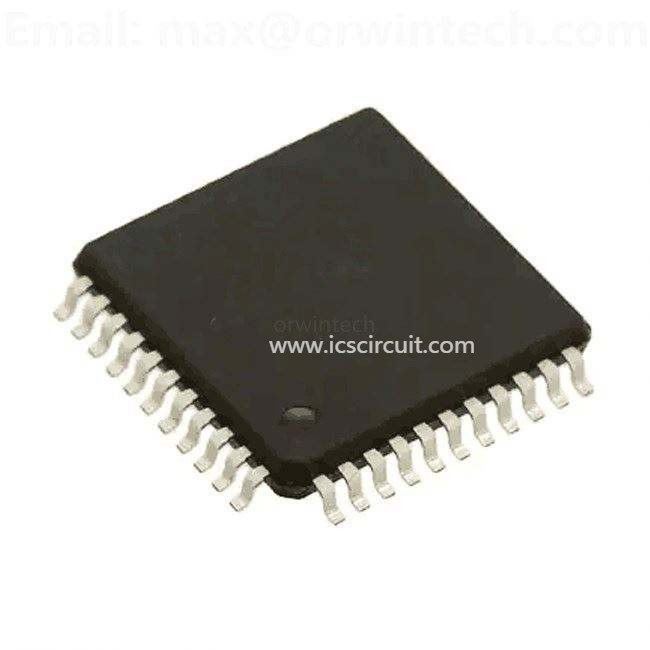

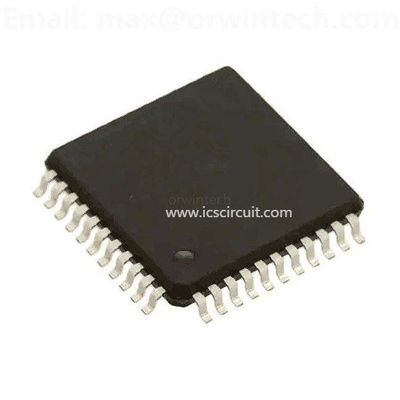

| Product Photos | 44-TQFP |
| Product Training Modules | picoPower™ Technology MCU Product Line Introduction megaAVR Introduction |
| PCN Packaging | MSL3 to MSL1 05/Apr/2013 |
| Standard Package | 160 |
| Category | Integrated Circuits (ICs) |
| Family | Embedded - Microcontrollers |
| Series | AVR® ATmega |
| Packaging | Tray |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I /O | 32 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 5.5 V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 44-TQFP |
| Catalog Page | 585 (CN081 PDF) |
| For Use With | ATSTK600-RC31-ND - STK600 ROUTING CARD AVR ATSTK600-TQFP44-ND - STK600 SOCKET/ADAPTER 44-TQFP ATSTK600-ND - DEV KIT FOR AVR/AVR32 ATAVRISP2-ND - PROGRAMMER AVR IN SYSTEM |
| Other Names | ATMEGA164P20AU |
