MC74HC595ADR2G ----- 8-BIT SERIAL-INPUT/SERIAL OR PARALLEL-OUTPUT SHIFT REGISTER WITH LATCHED 3-STATE OUTPUTS HIGH?PER
| High Light: |
computer integrated circuits,integrated circuit chips |
||
|---|---|---|---|
Quick Detail:
8-Bit Serial-Input/Serial or Parallel-Output Shift Register with Latched 3-State Outputs High?Performance Silicon?Gate CMOS
Specifications:
| Datasheets | MC74HC595A Datasheet |

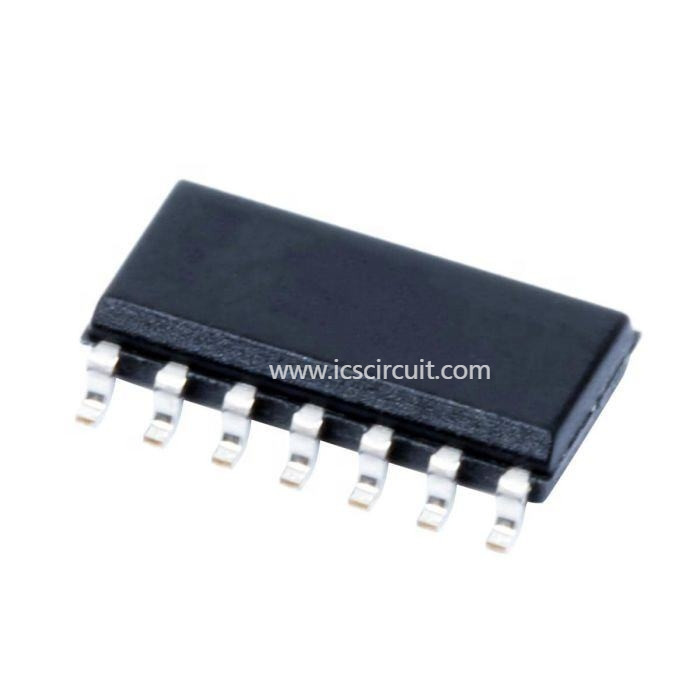

| Product Photos | 16 SOIC |
| Standard Package | 2,500 |
| Category | Integrated Circuits (ICs) |
| Family | Logic - Shift Registers |
| Series | 74HC |

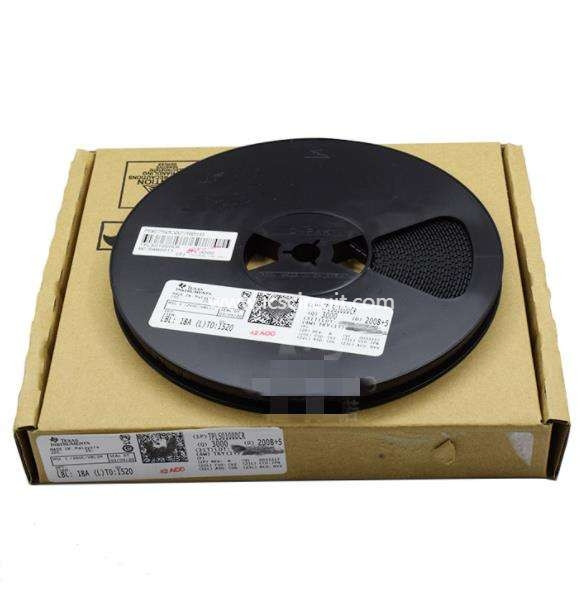

| Packaging | Tape & Reel (TR) |
| Logic Type | Shift Register |
| Output Type | Tri-State |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function | Serial to Parallel, Serial |
| Voltage - Supply | 2 V ~ 6 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Dynamic Catalog | 74HC |
| Other Names | MC74HC595ADR2GOS MC74HC595ADR2GOS-ND MC74HC595ADR2GOSTR |
