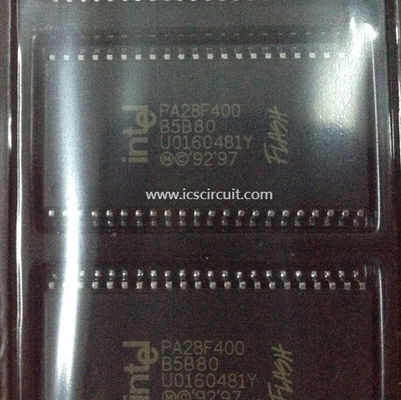

PA28F400B5B80 - INTEL CORPORATION - SMART 5 BOOT BLOCK FLASH MEMORY FAMILY 2, 4, 8 MBIT
Quick Detail:
SMART 5 BOOT BLOCK FLASH MEMORY FAMILY 2, 4, 8 MBIT
Description:
This datasheet contains specifications for 2-, 4-, and 8-Mbit Smart 5 boot block flash memories.
Section 1.0 provides a feature overview. Sections 2.0, 3.0, and 4.0 describe the product and functionality. Section 5.0 details the electrical and timing specifications for both commercial and extended temperature operation. Finally, Sections 6.0 and 7.0 provide ordering and reference information.
Applications:
* SmartVoltage Technology
Smart 5 Flash: 5 V Reads, 5 V or 12 V Writes
Increased Programming Throughput at 12 V VPP
* Very High-Performance Read
- 2-, 4-Mbit: 60 ns Access Time
- 8-Mbit: 70 ns Access Time
* x8 or x8/x16-Configurable Data Bus
* Low Power Consumption
- Max 60 mA Read Current at 5 V
Auto Power Savings: <1 mA Typical Standby Current
* Optimized Array Blocking Architecture
- 16-KB Protected Boot Block
- Two 8-KB Parameter Blocks
- 96-KB and 128-KB Main Blocks
- Top or Bottom Boot Locations
* Extended Temperature Operation
–40 °C to +85 °C
* Industry-Standard Packaging
40, 48-Lead TSOP, 44-Lead PSOP
* Extended Block Erase Cycling
- 100,000 Cycles at Commercial Temp
- 10,000 Cycles at Extended Temp
* Hardware Data Protection Feature
- Absolute Hardware-Protection for Boot Block
- Write Lockout during Power Transitions
* Automated Word/Byte Program and Block Erase
- Command User Interface
- Status Registers
- Erase Suspend Capability
* SRAM-Compatible Write Interface
* Reset/Deep Power-Down Input
Provides Low-Power Mode and Reset for Boot Operations
* Pinout Compatible 2, 4, and 8 Mbit
* ETOX™ Flash Technology
0.6 µ ETOX IV Initial Production
0.4 µ ETOX V Later Production
Specifications:
| part no. | PA28F400B5B80 |
| Manufacturer | Intel Corporation |
| supply ability | 10000 |
| datecode | 10+ |
| package | TSOP |
| remark | new and original stock |
