Chips FM24C256-SE Type RAM Flash Memory IC 256kb Fram Serial Memory

Minimum Order Quantity: 1
Chips FM24C256-SE Type RAM Flash Memory IC 256kb Fram Serial Memory
Features Gallery Product Description Request A Quote
Manufacturer Part Number: FM24C256-SE
Brand Name: Original
Type: Integrated Circuit
Description: CHIPS
Power (Watts): Standard
Place Of Origin: Original
High Light:

RAM Flash Memory IC


Flash Memory IC 256kb



Basic Infomation
Place of Origin: Original Factory
Brand Name: Ramtron International Corporation
Certification: ROHS COMPLIANT
Model Number: FM24C256-SE
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



Quick Detail:


256Kb FRAM Serial Memory





The FM24C256 is a 256-kilobit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is nonvolatile and performs reads and writes like a RAM. It provides reliable data retention for 45 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories.

The FM24C256 performs write operations at bus speed. No write delays are incurred. The next bus cycle may commence immediately without the need for data polling. In addition, the product offers write endurance orders of magnitude higher than EEPROM. Also, FRAM exhibits much lower power during writes than EEPROM since write operations do not require an internally elevated power supply voltage for write circuits.

These capabilities make the FM24C256 ideal for nonvolatile memory applications requiring frequent or rapid writes. Examples range from data collection where the number of write cycles may be critical, to demanding industrial controls where the long write time of EEPROM can cause data loss. The combination of features allows more frequent data writing with less overhead for the system.

The FM24C256 is available in a 8-pin EIAJ SOIC package using an industry standard two-wire protocol. Specifications are guaranteed over an industrial temperature range of -40°C to +85°C.





256Kbit Ferroelectric Nonvolatile RAM

• Organized as 32,768 x 8 bits

• High Endurance 10 Billion (1010) Read/Writes

• 45 year Data Retention

• NoDelay™ Writes

• Advanced High-Reliability Ferroelectric Process

Fast Two-wire Serial Interface

• Up to 1 MHz Maximum Bus Frequency

• Supports Legacy Timing for 100 kHz & 400 kHz

Low Power Operation

• 5V Operation

• 200 µA Active Current (100 kHz)

• 100 µA Standby Current

Industry Standard Configuration

• Industrial Temperature -40° C to +85° C

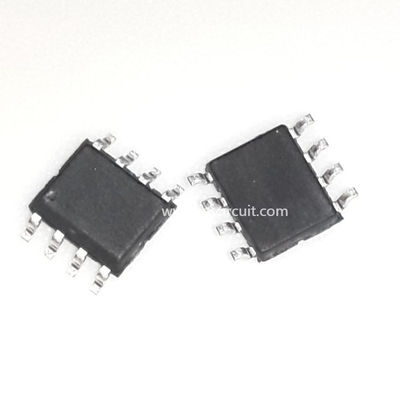

• 8-pin EIAJ SOIC

• “Green” Packaging Option




part no. FM24C256-SE
Manufacturer Ramtron International Corporation
supply ability 10000
datecode 10+
package 8PIN-SOP
remark new and original stock
