IC AVR32 32 Bit Microcontroller AT32UC3A1128-AUT Flash Memory

Minimum Order Quantity: 1
IC AVR32 32 Bit Microcontroller AT32UC3A1128-AUT Flash Memory
Features Gallery Product Description Request A Quote
Manufacturer Part Number: AT32UC3A1128-AUT
Brand Name: Original
Type: Integrated Circuit
Place Of Origin: Original
Description: Integrated Circuits
Cross Reference: Standard
High Light:

AVR32 32 Bit Microcontroller


IC 32 Bit Microcontroller


IC AVR32 Microcontroller

Basic Infomation
Place of Origin: PHILIPPINE
Brand Name: ATMEL
Certification: ROHS COMPLIANT
Model Number: AT32UC3A1128-AUT
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 500
Product Description



Quick Detail:


AVR32 32-Bit Microcontroller





The AT32UC3A is a complete System-On-Chip microcontroller based on the AVR32 UC RISC

processor running at frequencies up to 66 MHz. AVR32 UC is a high-performance 32-bit RISC

microprocessor core, designed for cost-sensitive embedded applications, with particular emphasis on low power consumption, high code density and high performance.

The processor implements a Memory Protection Unit (MPU) and a fast and flexible interrupt controller for supporting modern operating systems and real-time operating systems. Higher

computation capabilities are achievable using a rich set of DSP instructions.

The AT32UC3A incorporates on-chip Flash and SRAM memories for secure and fast access.

For applications requiring additional memory, an external memory interface is provided on

AT32UC3A0 derivatives.

The Peripheral Direct Memory Access controller enables data transfers between peripherals and memories without processor involvement. PDCA drastically reduces processing overhead whentransferring continuous and large data streams between modules within the MCU.

The PowerManager improves design flexibility and security: the on-chip Brown-Out Detector

monitors the power supply, the CPU runs from the on-chip RC oscillator or from one of external oscillator sources, a Real-Time Clock and its associated timer keeps track of the time.

The Timer/Counter includes three identical 16-bit timer/counter channels. Each channel can be independently programmed to perform frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse width modulation.

The PWM modules provides seven independent channels with many configuration options

including polarity, edge alignment and waveform non overlap control. One PWM channel can

trigger ADC conversions for more accurate close loop control implementations.

The AT32UC3A also features many communication interfaces for communication intensive

applications. In addition to standard serial interfaces like UART, SPI or TWI, other interfaces like flexible Synchronous Serial Controller, USB and Ethernet MAC are available.

The Synchronous Serial Controller provides easy access to serial communication protocols and audio standards like I2S.

The Full-Speed USB 2.0 Device interface supports several USB Classes at the same time

thanks to the rich End-Point configuration. The On-The-GO (OTG) Host interface allows device like a USB Flash disk or a USB printer to be directly connected to the processor.

The media-independent interface (MII) and reduced MII (RMII) 10/100 Ethernet MAC module

provides on-chip solutions for network-connected devices.

AT32UC3A integrates a class 2+ Nexus 2.0 On-Chip Debug (OCD) System, with non-intrusive

real-time trace, full-speed read/write memory access in addition to basic runtime control.





• High Performance, Low Power AVR®32 UC 32-Bit Microcontroller

– Compact Single-cycle RISC Instruction Set Including DSP Instruction Set

– Read-Modify-Write Instructions and Atomic Bit Manipulation

– Up to 66 MHz Clock Frequency with 1.24 DMIPS/MHz

– Memory Protection Unit

• Multi-hierarchy Bus System

– High-Performance Data Transfers on Separate Buses for Increased Performance

– 15 Peripheral DMA Channels for Automatic Data Transfer

• Internal High-Speed Flash

– 512K Bytes, 256K Bytes, 128K Bytes Versions

– Single Cycle Access up to 30 MHz

– Prefetch Buffer Optimizing Instruction Execution at Maximum Speed

– 1ms Page Programming Time and 2ms Full-Chip Erase Time

– 100,000 Write Cycles, 10-year Data Retention Capability

– Flash Security Locks and User Defined Configuration Area

• Internal High-Speed SRAM, Single-Cycle Access at Full Speed

– 64K Bytes (512KB and 256KB Flash), 32K Bytes (128KB Flash)

• External Memory Interface on AT32UC3A0 Derivatives

– SDRAM / SRAM Compatible Memory Bus (16-bit Data and 24-bit Address Buses)

• Interrupt Controller

– Autovectored Low Latency Interrupt Service with Programmable Priority

• System Functions

– Power and Clock Manager Including Internal RC Clock and One 32KHz Oscillator

– Two Multipurpose Oscillators and Two Phase-Lock-Loop (PLL)

– Watchdog Timer, Real-Time Clock Timer

• Universal Serial Bus (USB)

– Device 2.0 Full Speed and On-The-Go (OTG) Low Speed and Full Speed

– Flexible End-Point Configuration and Management with Dedicated DMA Channels

– On-chip Transceivers Including Pull-Ups

• Ethernet MAC 10/100 Mbps interface

– 802.3 Ethernet Media Access Controller

– Supports Media Independent Interface (MII) and Reduced MII (RMII)

• One Three-Channel 16-bit Timer/Counter (TC)

– Three External Clock Inputs, PWM, Capture and Various Counting Capabilities

• One 7-Channel 16-bit Pulse Width Modulation Controller (PWM)

• Four Universal Synchronous/Asynchronous Receiver/Transmitters (USART)

– Independant Baudrate Generator, Support for IrDA and ISO7816 interfaces

– Support for Hardware Handshaking, RS485 Interfaces and Modem Line

• Two Master/Slave Serial Peripheral Interfaces (SPI) with Chip Select Signals

• One Synchronous Serial Protocol Controller

– Supports I2S and Generic Frame-Based Protocols

• One Master/Slave Two-Wire Interface (TWI), 400kbit/s I2C-compatible

• One 8-channel 10-bit Analog-To-Digital Converter

• On-Chip Debug System (JTAG interface)

– Nexus Class 2+, Runtime Control, Non-Intrusive Data and Program Trace

• 100-pin TQFP (69 GPIO pins), 144-pin LQFP (109 GPIO pins)

• 5V Input Tolerant I/Os

• Single 3.3V Power Supply





Datasheets AT32UC3Azzzz Summary
AT32UC3Azzzz Manual

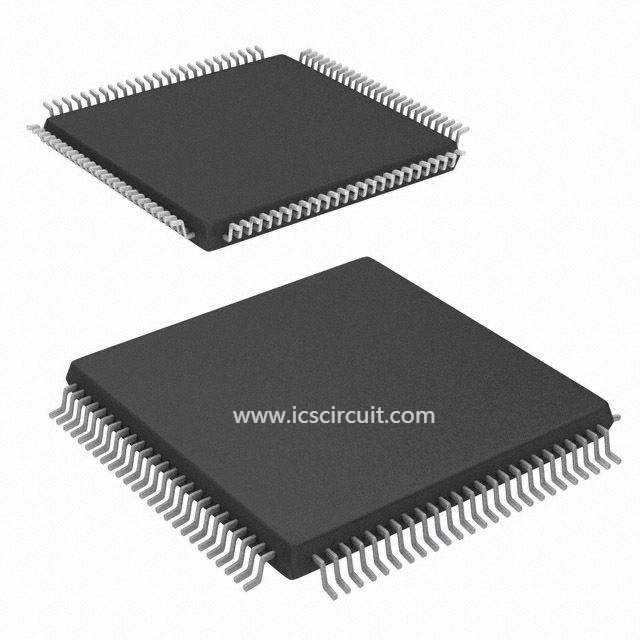

Product Photos 100-TQFP
Product Training Modules AVR UC3 Audio Application
MCU Product Line Introduction
AVR EVK1105 Digital Audio Gateway Kit
AVR® UC3 Introduction
Standard Package 450
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series AVR®32 UC3 A1
Packaging Tray
Core Processor AVR
Core Size 32-Bit
Speed 66MHz
Connectivity Ethernet, I²C, SPI, SSC, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I /O 69
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 32K x 8
Voltage - Supply (Vcc/Vdd) 1.65 V ~ 1.95 V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C
Package / Case 100-TQFP
Catalog Page 582 (CN081 PDF)
Other Names AT32UC3A1128AUT
