TLD1124EL Electronic Components IC Chips SOP14 HSSOP14 LED Driver IC 360ma

Minimum Order Quantity: 10 PCS
MOQ
negotiate
Price
TLD1124EL Electronic Components IC Chips SOP14 HSSOP14 LED Driver IC 360ma
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Original Brand
Type: Integrated Circuit
Manufacturer Part Number: TLD1124EL
D/C: New+Rohs
Port: Shenzhen Or Hongkong
Lead Time: 1-3Working Days
High Light:

TLD1124EL

,

TLD1124EL Electronic Components IC Chips

,

360ma LED Driver IC

Basic Infomation
Place of Origin: Original Factory
Certification: Standard Certification
Model Number: TLD1124EL
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 2000
Product Description

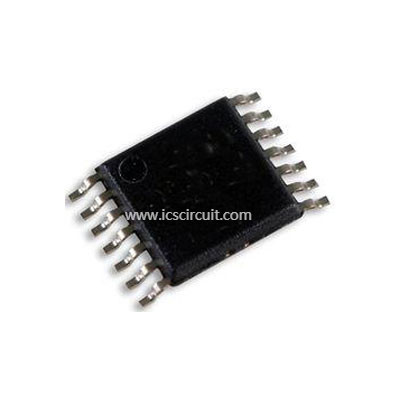

TLD1124EL ELECTRONIC COMPONENTS IC CHIPS INTEGRATED CIRCUITS IC SOP14 HSSOP14 LED DRVR LINEAR 360MA



LITIX TM Basic TLD1124EL is a one channel high side driver IC with integrated output stage. It is designed to control LEDs with a current up to 360 mA. In typical automotive applications the device is capable to drive i.e. 3 red LEDs with a current up to 180 mA, which is limited by thermal cooling aspects. The output current is controlled practically independent of load and supply voltage changes.

Specification

  • 1 Channel device with integrated output stage (current sources), optimized to drive LEDs
  • Output current up to 360mA per channel
  • Low current consumption in sleep mode
  • PWM-operation supported via VS- and EN-pin
  • Output current adjustable via external low power resistor and possibility to connect PTC resistor for LED protection during over temperature conditions
  • Reverse polarity protection
  • Overload protection
  • Undervoltage detection
  • Open load and short circuit to GND diagnosis
  • Wide temperature range: -40 °C < Tj < 150 °C
  • PG-SSOP14 package with exposed heatslug
  • Green Product (RoHS compliant)
  • AEC Qualified
