SMD Power Management Chips 6V TPS62290DRVT Drive IC Step Down Controller

Minimum Order Quantity: 10 PCS
SMD Power Management Chips 6V TPS62290DRVT Drive IC Step Down Controller
Features Gallery Product Description Request A Quote
Manufacturer Part Number: TPS62290DRVT
Type: Integrated Circuit
Brand Name: Original Brand
DC: Lastest New
Port: Shenzhen Or Hongkong
Lead Time: 1-3Working Days
High Light:

SMD Power Management Chips


Power Management Chips 6V



Basic Infomation
Place of Origin: Original Factory
Brand Name: Texas Instruments
Certification: ROHS
Model Number: TPS62290DRVT
Payment & Shipping Terms

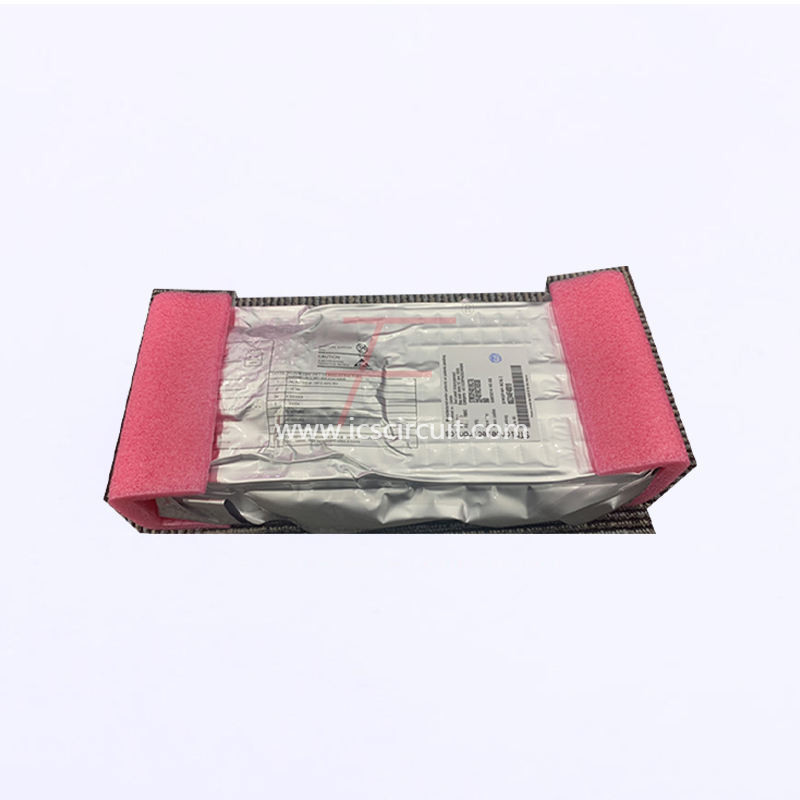

Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



Type: Drive IC Price: Please Contact Us
Shipping Way: Post Office And So On Shipping Ways: DHLUPSFedexEMSHK Post
Application: Driver/Controller
High Light:

Controller Texas Instruments PMIC


Step Down Texas Instruments PMIC





Power Management ICs Texas Instruments/TI TPS62290DRVT

ECAD Module PCB Symbol,Footprint & 3D Model
Introduction Date April 01, 2007
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2031
Alternative Parts
LTC3568EDD#TR; MP2105DK-Z; LTC3404IMS8; LTC3404IMS8#TR;
Supply and Demand Status Balance
Fake Threat In the Open Market 58 pct.
Popularity High
Is this a common-used part? Yes
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Synchronous Rectifier Yes
Family Name TPS62290
Frequency - Switching 2.25MHz
Maximum Output Voltage 6V
Case / Package 6-SON (2x2)
Maximum Input Voltage 6V
Number of Outputs 1
Output Type Adjustable
Topology Buck
Purpose Step-Down
Status Active
Packaging Reel - TR
Manufacturer Texas Instruments
Categories Integrated Circuits
Output Current 1A
Nominal Output Voltage (Min/Fixed) 0.6V
Minimum Input Voltage 2.3V


Features for the TPS62290

  • High Efficiency - up to 96%
  • Output Current up to 1000 mA
  • VIN Range From 2.3 V to 6.0V for Li-ion Batteries with Extended Voltage Range
  • 2.25-MHz Fixed Frequency Operation
  • Power Save Mode at Light Load Currents
  • Output Voltage Accuracy in PWM Mode ±1.5%
  • Fixed Output Voltage Options
  • Typical 15-µA Quiescent Current
  • 100% Duty Cycle for Lowest Dropout
  • Voltage Positioning at Light Loads
  • Available in a 2-mm × 2-mm × 0.8-mm WSON (6) Package (DRV)

Description for the TPS62290

The TPS6229x devices are highly efficient synchronous step down DC/DC convertersoptimized for battery powered portable applications. They provide up to 1000-mA output current froma single Li-ion cell.

With an input voltage range of 2.3 V to 6.0 V, the devices support batteries withextended voltage range and are ideal to power portable applications like mobile phones and otherportable equipment.

The TPS6229x devices operate at 2.25-MHz fixed switching frequency and enter power savemode operation at light load currents to maintain high efficiency over the entire load currentrange.

The power save mode is optimized for low output voltage ripple. For low noiseapplications, the devices can be forced into fixed frequency pulse width modulation (PWM) mode bypulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than1 µA. The TPS6229x devices allow the use of small inductors and capacitors to achieve a smallsolution size.

The TPS6229x devices operate over a free air temperature range of –40°C to 85°C. Thedevices are available in a 2-mm × 2-mm 6-pin WSON package (DRV).
