Programmable IC Chip XC5VLX155T-1FFG1136C Virtex-5 Fpga Electronic Component

Minimum Order Quantity: 1
Programmable IC Chip XC5VLX155T-1FFG1136C Virtex-5 Fpga Electronic Component
Features Gallery Product Description Request A Quote
Place Of Origin: Philippines
Brand Name: Original Brand
Manufacturer Part Number: XC5VLX155T-1FFG1136C
Type: Integrated Circuit
Unit Price: Contact Us Please
Process Time: 1-3 Working Days
Basic Infomation
Certification: Lead free / RoHS Compliant
Model Number: XC5VLX155T-1FFG1136C
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



Detailed Product Description
High Light:

ic integrated circuits


integrated circuit chips




Quick Detail:


Virtex-5 FPGA





Virtex®-5 FPGAs are available in -3, -2, -1 speed grades, with -3 having the highest performance. Virtex-5 FPGA DC and AC characteristics are specified for both commercial and industrial grades. Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device). However, only selected speed grades and/or devices might be available in the industrial range.

All supply voltage and junction temperature specifications are representative of worst-case conditions. The parameters included are common to popular designs and typical applications.





• Virtex-5 Family Overview

• Virtex-5 FPGA User Guide

• Virtex-5 FPGA Configuration Guide

• Virtex-5 FPGA XtremeDSP™ Design Considerations

• Virtex-5 FPGA Packaging and Pinout Specification

• Embedded Processor Block in Virtex-5 FPGAs Reference Guide

• Virtex-5 FPGA RocketIO™ GTP Transceiver User Guide

• Virtex-5 FPGA RocketIO GTX Transceiver User Guide

• Virtex-5 FPGA Embedded Tri-Mode Ethernet MAC User Guide

• Virtex-5 FPGA Integrated Endpoint Block User Guide for PCI Express® Designs

• Virtex-5 FPGA System Monitor User Guide

• Virtex-5 FPGA PCB Designer’s Guide





Datasheets Virtex-5 Family Overview

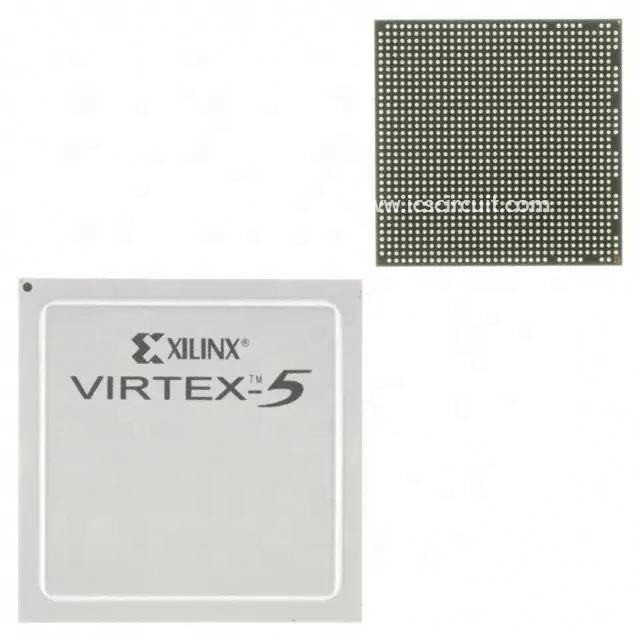

Product Photos Xilinx- 1136-FBGA
Standard Package 1
Category Integrated Circuits (ICs)
Family Embedded - FPGAs (Field Programmable Gate Array)
Series Virtex®-5 LXT
Number of LABs/CLBs 12160
Number of Logic Elements/Cells 155648
Total RAM Bits 7815168
Number of I /O 640
Number of Gates -
Voltage - Supply 0.95 V ~ 1.05 V
Mounting Type Surface Mount
Operating Temperature 0°C ~ 85°C
Package / Case 1136-BBGA, FCBGA
Supplier Device Package 1136-FCBGA (35x35)
For Use With 568-5088-ND - BOARD DEMO DAC1408D750
