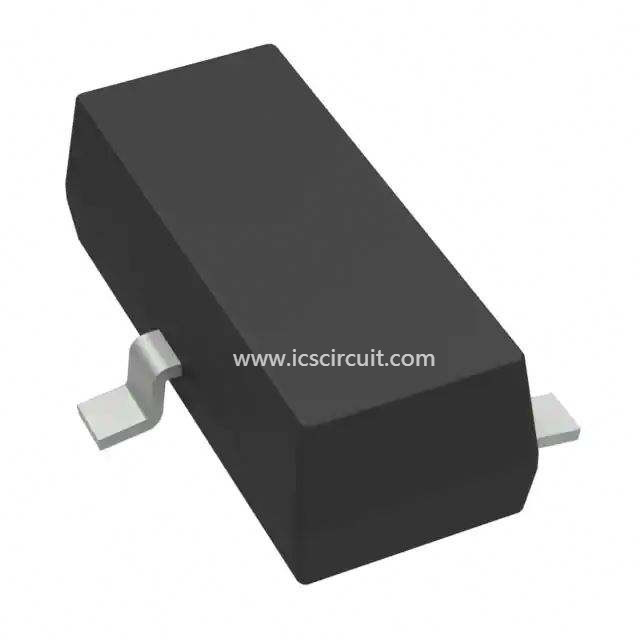

POWER LED DRIVER IC STPS3L60U - STMICROELECTRONICS - POWER SCHOTTKY RECTIFIER
| High Light: |
led matrix driver ic,offline led driver ic |
||
|---|---|---|---|
Quick Detail:
POWER SCHOTTKY RECTIFIER
Description:
Axial and Surface Mount Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in DO-201AD, DO-15 and SMB, this device is intended for use in low voltage, high frequency inverters and small battery chargers.
For applications where there are space constraints, e.g Telecom battery charger.
Applications:
■ NEGLIGIBLE SWITCHING LOSSES
■ LOW THERMAL RESISTANCE
■ AVALANCHE CAPABILITY SPECIFIED
Specifications:
| Datasheets | STPS3L60 |
| Product Photos | STPS2H100UY |
| Other Related Documents | STPS3L60 View All Specifications |
| Standard Package | 2,500 |
| Category | Discrete Semiconductor Products |
| Family | Diodes, Rectifiers - Single |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 620mV @ 3A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 150µA @ 60V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Other Names | 497-6584-2 STPS3L60U-ND |
