POWER LED DRIVER IC LM6321M - NATIONAL SEMICONDUCTOR - HIGH SPEED BUFFER
| High Light: |
led matrix driver ic,offline led driver ic |
||
|---|---|---|---|
Quick Detail:
High Speed Buffer
Description:
These high speed unity gain buffers slew at 800 V/µs and have a small signal bandwidth of 50 MHz while driving a 50Ω load. They can drive ±300 mA peak and do not oscillate while driving large capacitive loads. The LM6121 family are monolithic ICs which offer performance similar to the LH0002 with the additional features of current limit and thermal shutdown.
These buffers are built with National’s VIP™ (Vertically Integrated PNP) process which provides fast PNP transistors that are true complements to the already fast NPN devices.
This advanced junction-isolated process delivers high speed performance without the need for complex and expensive dielectric isolation.
Applications:
n High slew rate: 800 V/µs
n Wide bandwidth: 50 MHz
n Slew rate and bandwidth 100% tested
n Peak output current: ±300 mA
n High input impedance: 5 MΩ
n LH0002H pin compatible
n No oscillations with capacitive loads
n 5V to ±15V operation guaranteed
n Current and thermal limiting
n Fully specified to drive 50Ω lines
Specifications:
| part no. | LM6321M |
| Manufacturer | National Semiconductor |
| supply ability | 10000 |
| datecode | 10+ |

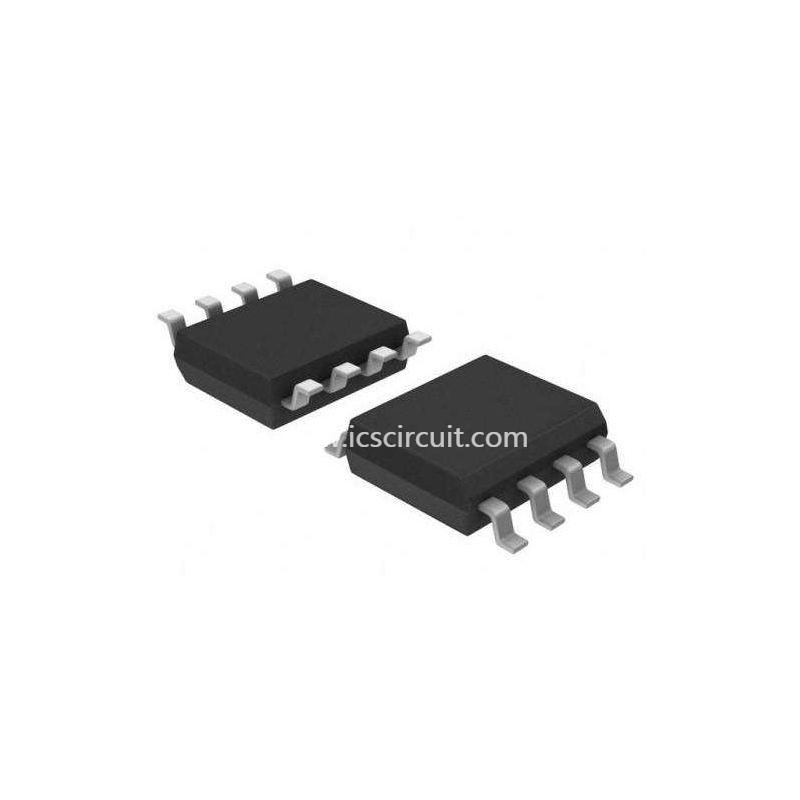

| package | SOP |
| remark | new and original stock |
