IC TPS2068DGNR current limited Power Distribution Switches ROHS

Minimum Order Quantity: 1
Contact for Sample
IC TPS2068DGNR current limited Power Distribution Switches ROHS
Features Gallery Product Description Request A Quote
Manufacturer Part Number: TPS2068DGNR
Brand Name: Original
Description: Integrated Circuits
Applications: Electronics
Power Source: AC
Memory Size: Standard
High Light:





Power Distribution Switches ROHS

Basic Infomation
Place of Origin: Original Factory
Brand Name: Texas Instruments
Certification: ROHS COMPLIANT
Model Number: TPS2068DGNR
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description



Detailed Product Description
High Light:

power led driver circuit


led matrix driver ic



Quick Detail:







The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70-mΩ N-channel MOSFET power switches for power-distribution systems that require single or dual power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.

When the output load exceeds the current-limit threshold or a short is present, the device limits the output current to a safe level by switching into a constant-current mode, pulling the overcurrent (OCx) logic output low.

When continuous heavy overloads and short-circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures that the switch remains off until valid input voltage is present. Current limit is typically 2.1 A.





• 70-mΩ High-Side MOSFET

• 1.5-A Continuous Current

• Thermal and Short-Circuit Protection

• Accurate Current Limit (1.6 A min, 2.6 A max)

• Operating Range: 2.7 V to 5.5 V

• 0.6-ms Typical Rise Time

• Undervoltage Lockout

• Deglitched Fault Report (OC)

• No OC Glitch During Power Up

• 1-µA Maximum Standby Supply Current

• Reverse Current Blocking

• TPS2060/64 Temperature Range: 0°C to 70°C

• TPS2068/69 Temperature Range:-40°C to 85°C

• ESD Protection

• UL Listed – File No. E169910





Datasheets TPS2060/4/8/9

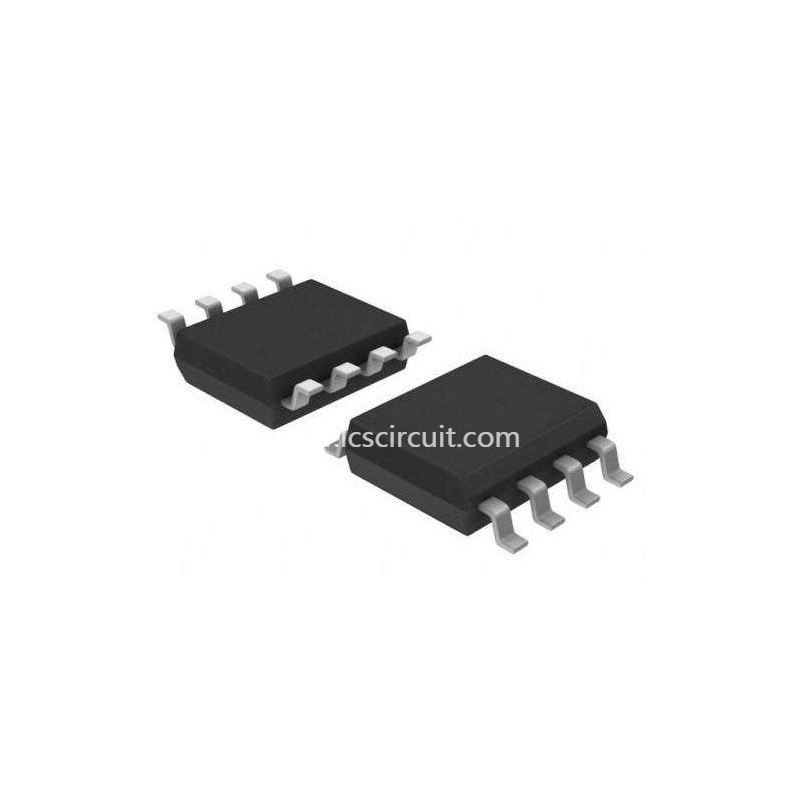

Product Photos 8-MSOP Exp Pad Pkg
Standard Package 2,500
Category Integrated Circuits (ICs)
Family PMIC - Power Distribution Switches
Series -

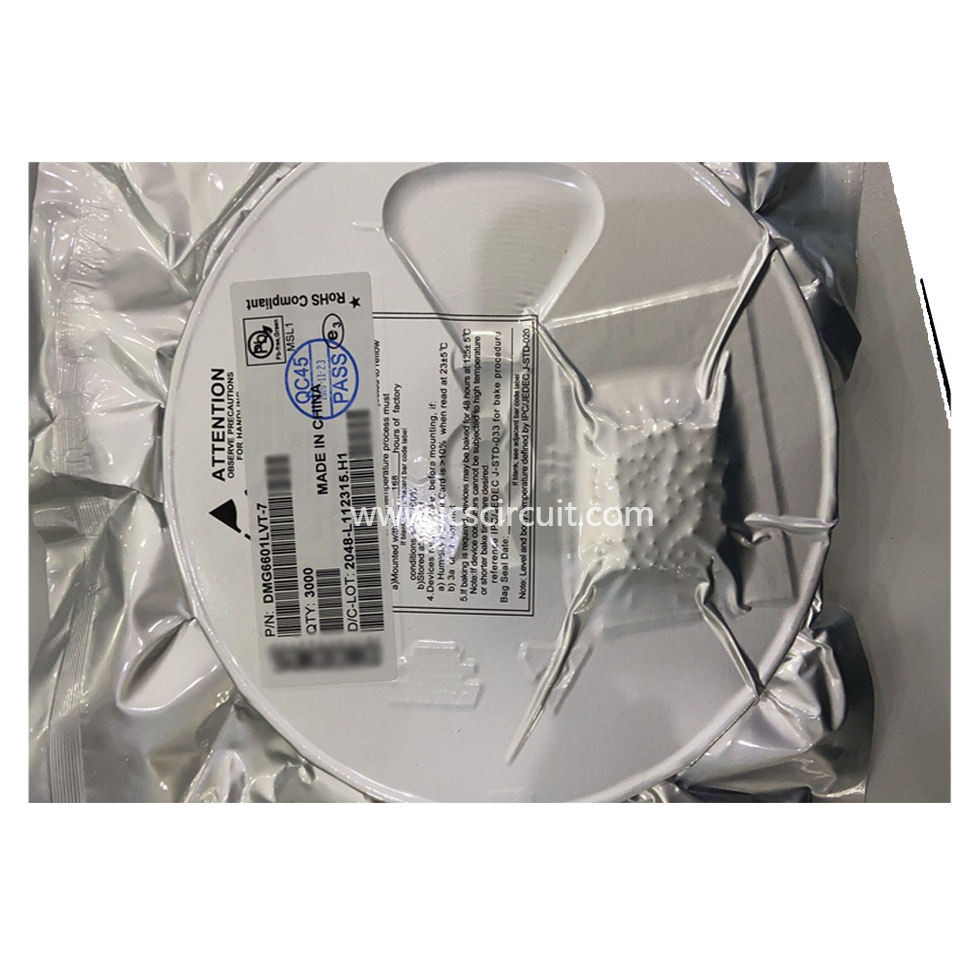

Packaging Tape & Reel (TR)
Type High Side Switch
Number of Outputs 1
Rds (On) 115 mOhm
Internal Switch(s) Yes
Current Limit 2.1A
Voltage - Input 2.7 V ~ 5.5 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package 8-MSOP-PowerPad
For Use With TPS2068EVM-292-ND - TPS2068EVM-292
