TPS62007DG -TEXAS INSTRUMENT-HIGH-EFFICIENCY STEP-DOWN LOW POWER DC-DC CONVERTER

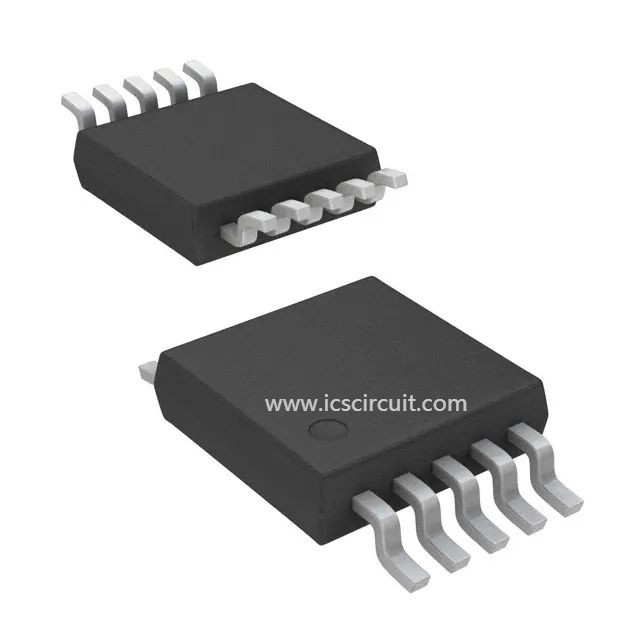

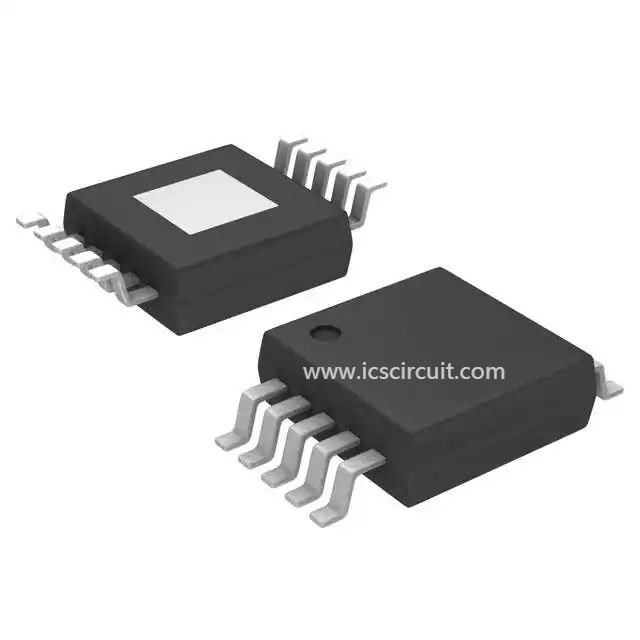

| Product Photos: | 10-MSOP | Voltage - Input: | 2 V ~ 5.5 V |
|---|---|---|---|
| Current - Output: | 600mA | Mounting Type: | Surface Moun |
| Type: | Step-Down (Buck) | Voltage - Output: | 3.3V |
| High Light: |
power led driver circuit,led matrix driver ic |
||
Quick Detail:
HIGH-EFFICIENCY STEP-DOWN LOW POWER DC-DC CONVERTER
Description:
The TPS6200x devices are a family of low-noise synchronous step-down dc-dc converters that are ideally suited for systems powered from a 1-cell Li-ion battery or from a 2- to 3-cell NiCd, NiMH, or alkaline battery. The TPS6200x operates typically down to an input voltage of 1.8 V, with a specified minimum input voltage of 2 V.
Applications:
High-Efficiency Synchronous Step-Down Converter With Greater Than 95% Efficiency
2 V to 5.5 V Operating Input Voltage Range
Adjustable Output Voltage Range From 0.8 V to VI
Fixed Output Voltage Options Available in 0.9 V, 1 V, 1.2 V, 1.5 V, 1.8 V, 1.9 V, 2.5 V, and 3.3 V
Synchronizable to External Clock Signal up to 1 MHz
Up to 600 mA Output Current
Pin-Programmable Current Limit
High Efficiency Over a Wide Load Current Range in Power Save Mode
100% Maximum Duty Cycle for Lowest Dropout
Low-Noise Operation Antiringing Switch and PFM/PWM Operation Mode
Internal Softstart
50-µA Quiescent Current (TYP)
Available in the 10-Pin Microsmall Outline Package (MSOP)
Evaluation Module Available
Available in a Ultra-Small, 12-Pin NanoStar (Wafer Chip-Scale) Package
Specifications:
| Datasheets | TPS62000-08 |
| Product Photos | 10-MSOP |
| PCN Design/Specification | SOT23, VSSOP Cu Wire 28/Jun/2013 |
| Standard Package | 80 |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | - |
| Packaging | Tube |
| Type | Step-Down (Buck) |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Output | 3.3V |
| Voltage - Input | 2 V ~ 5.5 V |
| PWM Type | Current Mode |
| Frequency - Switching | 500kHz ~ 1MHz |
| Current - Output | 600mA |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Catalog Page | 892 (CN081 PDF) |
| For Use With | 296-20619-ND - EVAL MOD FOR TPS62007 |
| Other Names | 296-12517-5 |
