FLASH MEMORY IC CHIP AT25F4096W-10SU-2.7 - ATMEL CORPORATION - SPI SERIAL MEMORY 4M
Quick Detail:
SPI SERIAL MEMORY 4M
Description:
The AT25F4096 provides 4,194,304 bits of serial reprogrammable Flash memory organized as 524,288 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT25F4096 is available in a space-saving 8-lead EIAJ SOIC package.
Applications:
• Serial Peripheral Interface (SPI) Compatible
• Supports SPI Modes 0 (0,0) and 3 (1,1)
– Datasheet describes Mode 0 Operation
• 20 MHz Clock Rate
• Byte Mode and 256-byte Page Mode for Program Operations
• Sector Architecture:
– Eight Sectors with 64K Bytes Each (4M)
– 256 Pages per Sector
• Product Identification Mode
• Low-voltage Operation
– 2.7 (VCC = 2.7V to 3.6V)
• Sector Write Protection
– Protect 1/8, 1/4, 1/2 or Entire Array
• Write Protect (WP) Pin and Write Disable Instructions for both Hardware and Software Data Protection
• Self-timed Program Cycle (30 µs/Byte Typical)
• Self-timed Sector Erase Cycle (1 second/Sector Typical)
• Single Cycle Reprogramming (Erase and Program) for Status Register
• High Reliability
– Endurance: 10,000 Write Cycles Typical
• 8-lead EIAJ SOIC
Specifications:
| Datasheets | AT25F4096 |

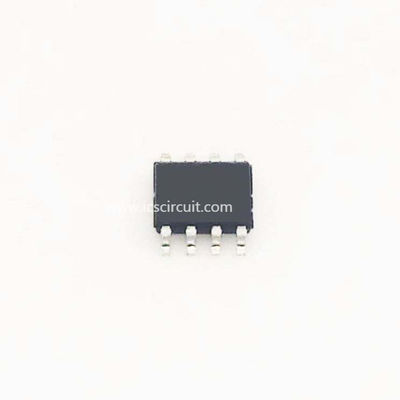

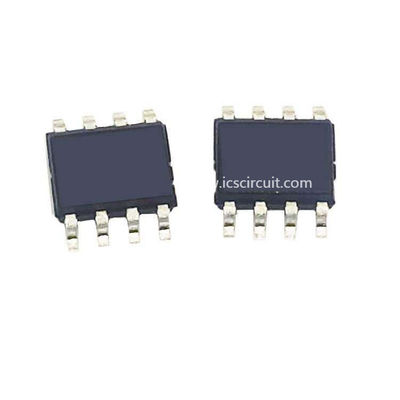

| Product Photos | 8-SOIC |
| Standard Package | 94 |
| Category | Integrated Circuits (ICs) |
| Family | Memory |
| Series | - |
| Packaging | Tube |
| Format - Memory | FLASH |
| Memory Type | FLASH |
| Memory Size | 4M (512K x 8) |
| Speed | 33MHz |
| Interface | SPI Serial |
| Voltage - Supply | 2.7 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Catalog Page | 1090 (CN081 PDF) |
