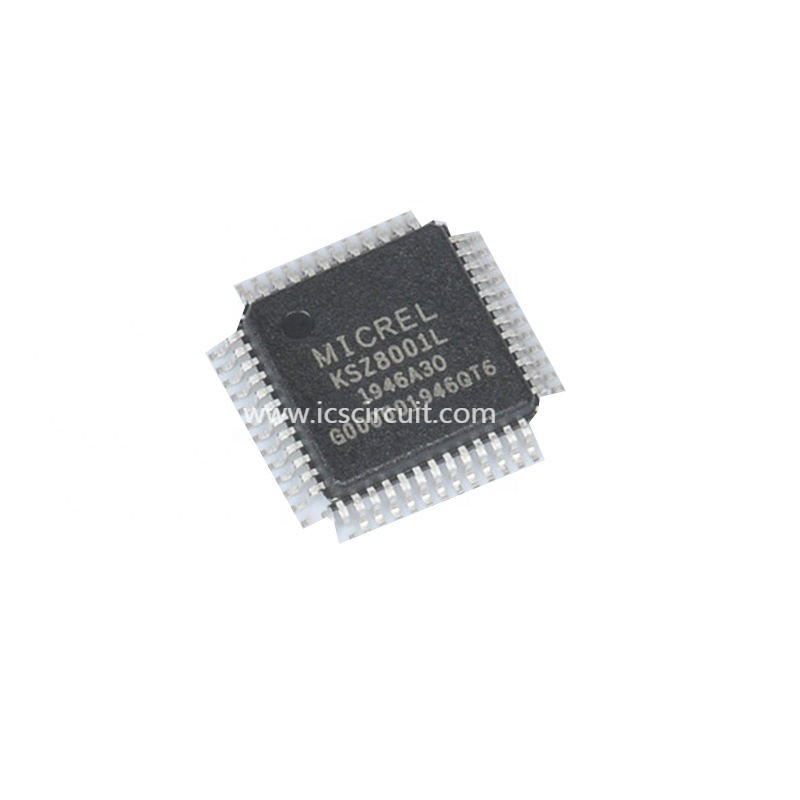

KSZ8001L Semiconductor 1.8v 3.3v 10/100basetx/Fx Physical Layer Transceiver

KSZ8001L - MICREL SEMICONDUCTOR - 1.8V, 3.3V 10/100BASETX/FX PHYSICAL LAYER TRANSCEIVER

Quick Detail:

1.8V, 3.3V 10/100BASETX/FX Physical Layer Transceiver

Description:

The KS8001 is a 10BASE-T/100BASE-TX/FX Physical Layer Transceiver, operating the core at 1.8 volts to meet low voltage and low power requirements. The solution provides MII/RMII/SMII interfaces to transmit and receive data. A unique mixed-signal design extends signaling distance while reducing power consumption.

HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables.

Featuring LinkMD cable diagnostics, which allows detection of common cabling plant problems such as open and short circuits, the KS8001 represents a new level of features and performance and is an ideal choice of physical layer transceiver for 100BASE-TX/10BASET/100BASE-FX applications.

Applications:

• Single chip 100BASE-TX/100BASE-FX/10BASE-T physical layer solution

• 1.8V CMOS design, power consumption 250 mW

• Robust (130m+) operation over standard cables

• Supports Media Independent Interface (MII), Reduced

MII (RMII), and Serial MII (SMII)

• LinkMD feature to determine cable length and diagnose faulty cables up 200 m with +/- 2 m accuracy

• Supports HP MDI/MDI-X auto crossover

• Supports power down mode and power saving mode

• MDC/MDIO to 12.5 MHz for rapid configuration

• Fully compliant to IEEE 802.3u standard

• Supports auto-negotiation and manual selection for 10/100Mbps speed and full / half-duplex mode
