AT49BV320DT-70TU 32-Megabit (2m X 16) 3-Volt Only Flash Memory

Minimum Order Quantity: 10 PCS
MOQ
negotiate
Price
AT49BV320DT-70TU 32-Megabit (2m X 16) 3-Volt Only Flash Memory
Features Gallery Product Description Request A Quote
Features
Specifications
Manufacturer Part Number: AT49BV320DT-70TU
D/C: New+Rohs
Quality: 100% Original 100% Brand
Lead Free Status: ROHS
Product Name: Memory
Brand Name: Original Brand
Basic Infomation
Place of Origin: PHILIPPINE
Brand Name: ATMEL Corporation
Certification: ROHS COMPLIANT
Model Number: AT49BV320DT-70TU
Payment & Shipping Terms
Packaging Details: Standard Packaging
Delivery Time: Within 3days
Payment Terms: T/T in advance, Western Union, Xtransfer
Supply Ability: 1000
Product Description

AT49BV320DT-70TU - ATMEL CORPORATION - 32-MEGABIT (2M X 16) 3-VOLT ONLY FLASH MEMORY



Quick Detail:



32-megabit (2M x 16) 3-volt Only Flash Memory





Description:



The AT49BV320D(T) is a 2.7-volt 32-megabit Flash memory organized as 2,097,152 words of 16 bits each. The memory is divided into 71 sectors for erase operations.

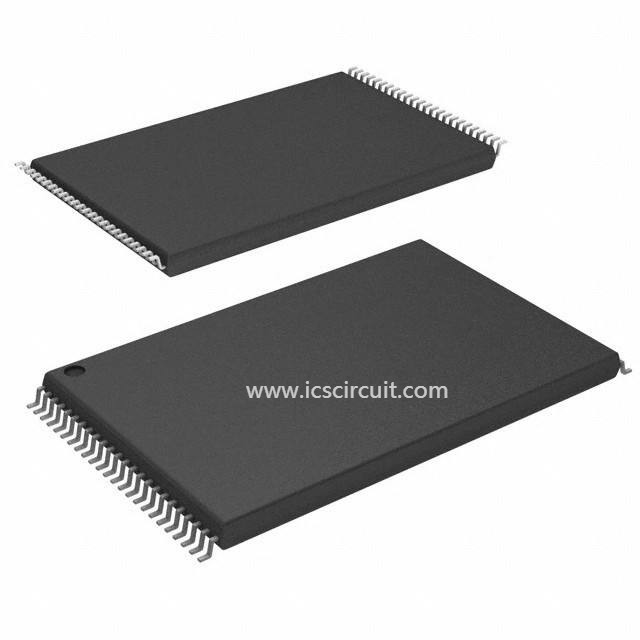

The device is offered in a 48-lead TSOP package and a 47-ball CBGA package. The device has CE and OE control signals to avoid any bus contention. This device can be read or reprogrammed using a single power supply, making it ideally suited for in-system programming.

The device powers on in the read mode. Command sequences are used to place the device in other operation modes such as program and erase. The device has the capability to protect the data in any sector (see “Flexible Sector Protection” on page 6).

To increase the flexibility of the device, it contains an Erase Suspend and Program Suspend feature. This feature will put the erase or program on hold for any amount of time and let the user read data from or program data to any of the remaining sectors within the memory.

The VPP pin provides data protection. When the VPP input is below 0.4V, the program and erase functions are inhibited. When VPP is at 1.65V or above, normal program and erase operations can be performed. With VPP at 10.0V, the program (Dual-word Program command) operation is accelerated.





Applications:



• Single Voltage Read/Write Operation: 2.65V to 3.6V

• Access Time – 70 ns

• Sector Erase Architecture

– Sixty-three 32K Word (64K Bytes) Sectors with Individual Write Lockout

– Eight 4K Word (8K Bytes) Sectors with Individual Write Lockout

• Fast Word Program Time – 10 µs

• Fast Sector Erase Time – 100 ms

• Suspend/Resume Feature for Erase and Program

– Supports Reading and Programming from Any Sector by Suspending Erase of a Different Sector

– Supports Reading Any Word by Suspending Programming of Any Other Word

• Low-power Operation

– 10 mA Active

– 15 µA Standby

• VPP Pin for Write Protection and Accelerated Program Operation

• WP Pin for Sector Protection

• RESET Input for Device Initialization

• Flexible Sector Protection

• TSOP and CBGA Package Options

• Top or Bottom Boot Block Configuration Available

• 128-bit Protection Register

• Minimum 100,000 Erase Cycles

• Common Flash Interface (CFI)

• Green (Pb/Halide-free) Packaging





Specifications:



part no. AT49BV320DT-70TU
Manufacturer ATMEL Corporation
supply ability 10000
datecode 10+
package SOP
remark new and original stock
