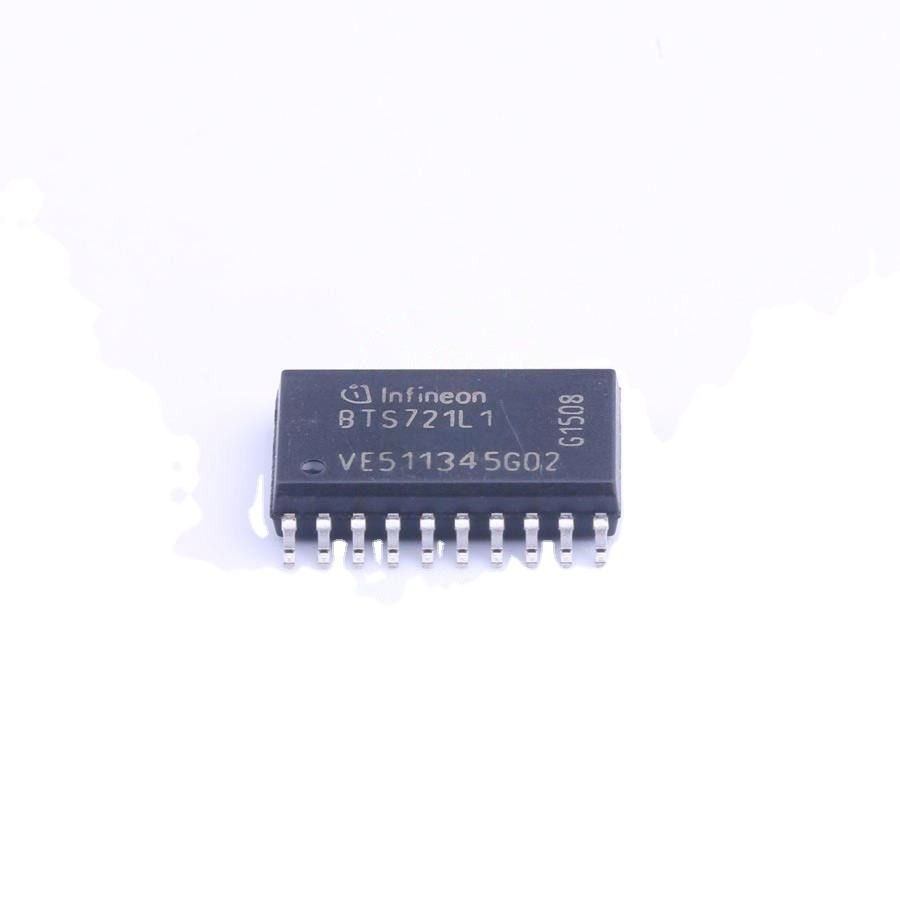

INTEGRATED CIRCUIT CHIP BTS721L1 --SMART FOUR CHANNEL HIGHSIDE POWER SWITCH POWER MANAGEMENT IC VOLTAGE REGULATOR
Quick Detail:
Smart Four Channel Highside Power Switch (Overload protection Current limitation Short-circuit protection Thermal shutdown)
Specifications:
| Datasheets | BTS721L1 |
| Product Photos | 20-SOIC 0.295 |
| Standard Package | 1,000 |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - MOSFET, Bridge Drivers - Internal Switch |
| Series | PROFET® |
| Packaging | Tape & Reel (TR) |
| Type | High Side |
| Input Type | Non-Inverting |
| Number of Outputs | 4 |
| On-State Resistance | 85 mOhm |
| Current - Output / Channel | 2.9A |
| Current - Peak Output | 14A |
| Voltage - Supply | 5 V ~ 34 V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-20 |
| Dynamic Catalog | High Side, High Side Switch |
| Other Names | BTS721L1-ND Q1736924 SP000011301 SP000317661 |
