AT91SAM7A3-AU Specification for AT91SAM7A3-AU .pdf

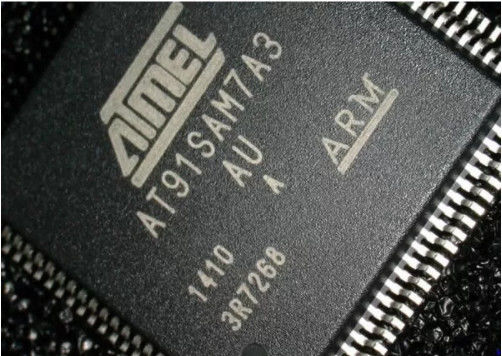

Specification for Integrated Circuit Chip AT91SAM7A3-AU ATMEL QFP:
| Mfr Package Description | GREEN, LQFP-100 | External Data Bus Width | 0 | Package Style | FLATPACK, LOW PROFILE, FINE PITCH | Supply Voltage-Nom | 1.8 V |
| EU RoHS Compliant | Yes | JESD-30 Code | S-PQFP-G100 | Peak Reflow Temperature (Cel) | 260 | Supply Voltage-Min | 1.65 V |
| Status | Discontinued | Moisture Sensitivity Level | 3 | Power Supplies | 1.8,3.3 | Supply Voltage-Max | 1.95 V |
| Microprocessor/Microcontroller/Peripheral IC Type | MICROCONTROLLER, RISC | Number of I/O Lines | 62 | PWM Channels | YES | Surface Mount | YES |
| ADC Channels | YES | Number of Terminals | 100 | Qualification Status | Not Qualified | Technology | CMOS |
| Address Bus Width | 0 | Operating Temperature-Min | -40.0 Cel | RAM (bytes) | 32768 | Temperature Grade | INDUSTRIAL |
| Bit Size | 32 | Operating Temperature-Max | 85.0 Cel | ROM Programmability | FLASH | Terminal Form | GULL WING |
| Clock Frequency-Max | 50.0 MHz | Package Body Material | PLASTIC/EPOXY | ROM (words) | 65536 | Terminal Pitch | 0.5 mm |
| CPU Family | ARM7 | Package Code | LFQFP | Seated Height-Max | 1.6 mm | Terminal Position | QUAD |
| DAC Channels | NO | Package Equivalence Code | QFP100,.63SQ,20 | Speed | 60.0 MHz | Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| DMA Channels | YES | Package Shape | SQUARE | Sub Category | Microcontrollers | Length | 14.0 mm |
| Width | 14.0 mm | Additional Feature | ALSO REQUIRES 3.3V SUPPLY |
